Power Integrations provides a recommended PCB layout in their application note AN-63, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using a soft-start circuit to limit the inrush current and a shutdown circuit to prevent voltage spikes.
The critical components that affect the reliability of the SIC1181KQ include the input capacitors, output capacitors, and the transformer. It's essential to select components with high reliability and to follow the recommended component selection guidelines in the datasheet.
Power Integrations provides a troubleshooting guide in their application note AN-64, which includes step-by-step procedures for identifying and resolving common issues with the SIC1181KQ. Additionally, the datasheet provides a list of possible error conditions and their corresponding fault flags.
Power Integrations recommends following the test and measurement procedures outlined in their application note AN-65, which includes guidelines for measuring efficiency, output voltage regulation, and other key performance parameters.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIC1181KQ Overview

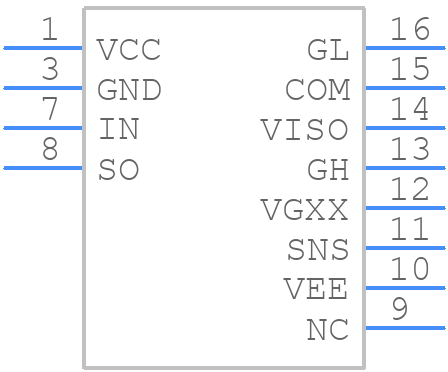

Use the download button to access the SIC1181KQ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SIC11,
or try a keyword search, such as MOSFET Drivers
