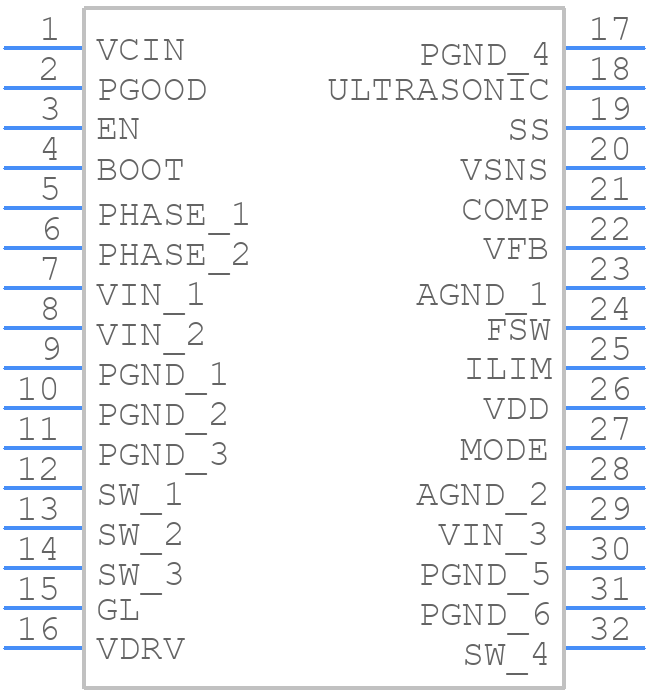

SiC462ED-T1-GE3 - Vishay

SiC462ED-T1-GE3 Details

• Manufacturer Part Number:

  SIC462ED-T1-GE3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  16 Weeks

• Date Of Intro:

  2017-03-08

• Manufacturer:

  Vishay Intertechnologies

• YTEOL:

  8

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  CONSTANT ON TIME

• Input Voltage-Max:

  60 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  48 V

• JESD-30 Code:

  S-XQCC-N27

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  27

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  9.6 A

• Output Voltage-Max:

  55.2 V

• Output Voltage-Min:

  0.8 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC27,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Current-Max (Isup):

  0.325 mA

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2000 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5 mm
