SIC473ED-T1-GE3 - Vishay

Description: Switching Voltage Regulators 4.5-55V 5A microBUCK 100kHz-2MHz

Download SIC473ED-T1-GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

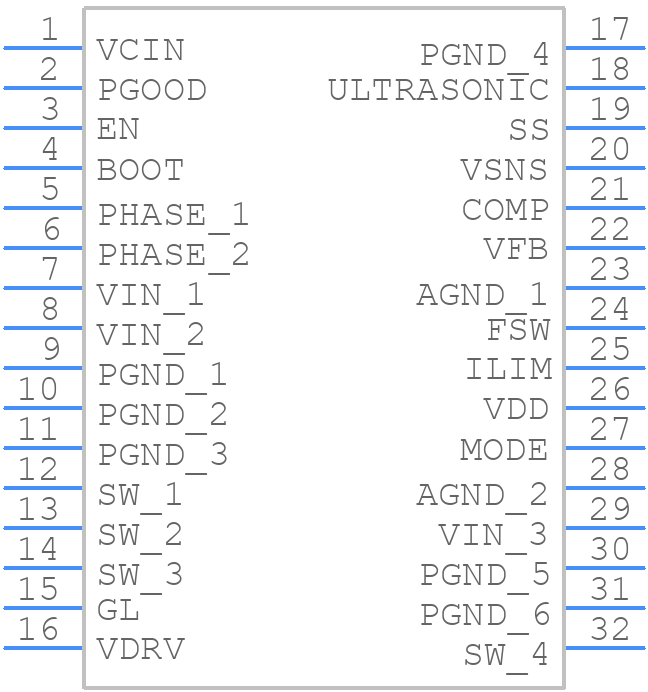

SIC473ED-T1-GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SIC473ED-T1-GE3 - Vishay PCB footprint - Other - Other - MLP27-55 BWL (LONG GATE LEAD)
click to zoom
3D Models
SIC473ED-T1-GE3 - Vishay - 3D model - Other - MLP27-55 BWL (LONG GATE LEAD)
click to zoom

SIC473ED-T1-GE3 Details

  • Manufacturer Part Number:

    SIC473ED-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MLP-27

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-09-08

  • Manufacturer:

    Vishay Intertechnologies

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    55 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XQCC-N27

  • Number of Functions:

    1

  • Number of Terminals:

    27

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8.4 A

  • Output Voltage-Max:

    50.6 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC27(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Supply Current-Max (Isup):

    3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

SIC473ED-T1-GE3 Frequently Asked Questions (FAQs)

  • Store the devices in a dry, cool place, away from direct sunlight, and avoid exposure to moisture, dust, and extreme temperatures.
  • Use an ESD wrist strap, mat, or workstation, and handle the device by the body or leads, avoiding direct contact with the die.
  • The maximum power dissipation is dependent on the thermal resistance and ambient temperature. Refer to the thermal management section in the datasheet for more information.
  • While SIC473ED-T1-GE3 is a high-performance device, it may not meet the specific requirements for high-reliability or aerospace applications. Consult with Vishay Intertechnologies or a qualified representative for guidance on using this device in such applications.
  • Follow the recommended soldering profile, use a solder with a melting point below 260°C, and avoid exposing the device to excessive thermal stress or overheating during the soldering process.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIC473ED-T1-GE3 Overview

Use the download button to access the SIC473ED-T1-GE3 schematic symbol, PCB footprint, and 3D model.
