SID1102K - Power Integrations

Description: Gate Drivers Sgl Ch 5.0A Fluxlink 75kHz 1200V IGBT

Download SID1102K Model

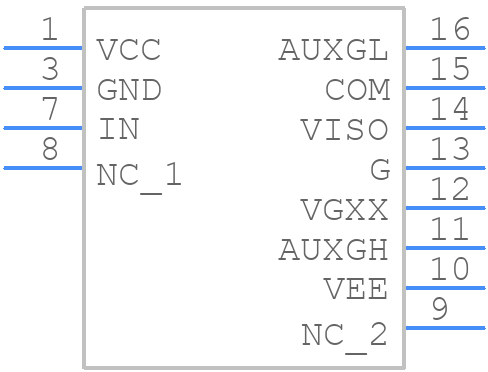

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SID1102K - Power Integrations PCB footprint - Other - Other - ESOP-R16B_FFW
click to zoom

SID1102K Details

  • Manufacturer Part Number:

    SID1102K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-28

  • Manufacturer:

    Power Integrations

  • YTEOL:

    8

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G15

  • Length:

    10.16 mm

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP15/16,.46

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    2.67 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    22 V

  • Supply Voltage1-Nom:

    25 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    359 µs

  • Turn-on Time:

    364 µs

  • Width:

    8.89 mm

SID1102K Frequently Asked Questions (FAQs)

  • Power Integrations provides a recommended PCB layout guide in their application notes (AN-63) and evaluation board documentation. It's essential to follow these guidelines to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • Power Integrations provides a transformer selection guide in their application notes (AN-55) and online tools. Factors to consider include the desired output voltage, output power, and operating frequency. It's also important to ensure the transformer is designed for the specific SID1102K switching frequency.
  • The SID1102K has a high power density, so thermal management is crucial. Ensure good airflow around the device, use a heat sink if necessary, and follow Power Integrations' thermal design guidelines. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
  • Follow Power Integrations' EMC design guidelines, including proper PCB layout, component selection, and shielding. Ensure the design meets the relevant EMC standards for your application, such as CISPR 22 or FCC Part 15.
  • The SID1102K is designed to meet high reliability standards, with a typical lifetime of 10-15 years or more, depending on the application and operating conditions. Power Integrations provides reliability data and guidelines for ensuring long-term reliability in their documentation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SID1102K Overview

Use the download button to access the SID1102K schematic symbol and PCB footprint.
