SID1152K - Power Integrations

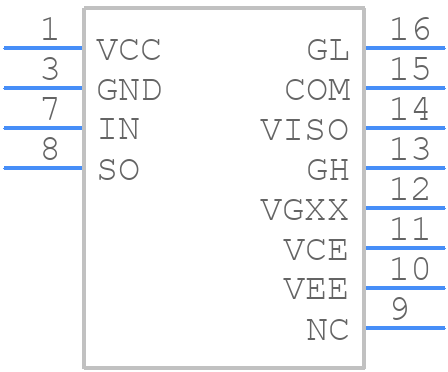

SID1152K Details

• Manufacturer Part Number:

  SID1152K

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Power Integrations

• YTEOL:

  8.1

• High Side Driver:

  NO

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G15

• Length:

  10.16 mm

• Number of Functions:

  1

• Number of Terminals:

  15

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Output Peak Current Limit-Nom:

  5 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOP15/16,.46

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.67 mm

• Supply Current-Max:

  23 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  28 V

• Supply Voltage1-Min:

  22 V

• Supply Voltage1-Nom:

  25 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Turn-off Time:

  359 µs

• Turn-on Time:

  364 µs

• Width:

  8.89 mm
