SID1183K - Power Integrations

Description: Gate Drivers Sgl Ch 8.0A Fluxlink 75kHz 260ns 1700V

Download SID1183K Model

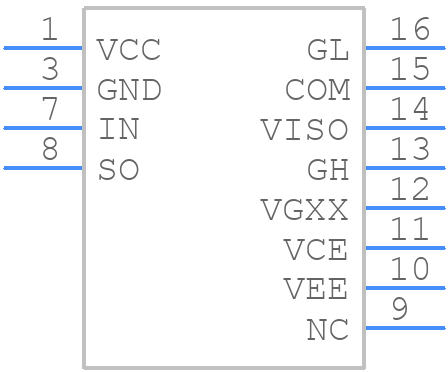

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SID1183K - Power Integrations PCB footprint - Other - Other - SID1183K-2
click to zoom

SID1183K Details

  • Manufacturer Part Number:

    SID1183K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HSOP-16/15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-05-22

  • Manufacturer:

    Power Integrations

  • YTEOL:

    3

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G15

  • Length:

    10.16 mm

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    8 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP15/16,.46

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.67 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    22 V

  • Supply Voltage1-Nom:

    25 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    359 µs

  • Turn-on Time:

    364 µs

  • Width:

    8.89 mm

SID1183K Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
  • Ensure that the input voltage rises slowly (dv/dt < 50 V/ms) and the output capacitor is fully discharged before start-up. Also, add a soft-start circuit to limit the inrush current.
  • The SID1183K can withstand voltage stress up to 1.5 times the maximum input voltage rating (Vin_max) for a short duration (< 100 ms). However, it's recommended to keep the voltage stress below Vin_max for reliable operation.
  • Use a low-ESR output capacitor, minimize the output voltage ripple, and ensure the feedback resistors have a high impedance. Also, consider using a low-power mode or a burst-mode operation to reduce standby power consumption.
  • Use a common-mode choke with a ferrite core and a differential-mode inductor with a magnetic core. Add a Y-capacitor (e.g., 1 nF) between the input and output grounds to reduce EMI emissions.
