SIF 422 24VDC - ELESTA

Description: PCB Mount Force Guided Relay, 24V dc Coil Voltage, 8A Switching Current, 4PNO, DPST

Download SIF 422 24VDC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SIF 422 24VDC model

Email notifications will be applied after download.

Send part feedback

Symbol

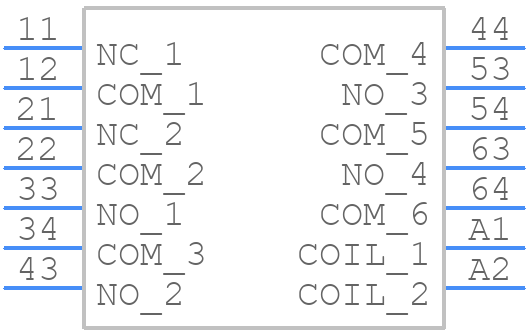

SIF 422 24VDC - ELESTA - PCB symbol

PCB Footprints

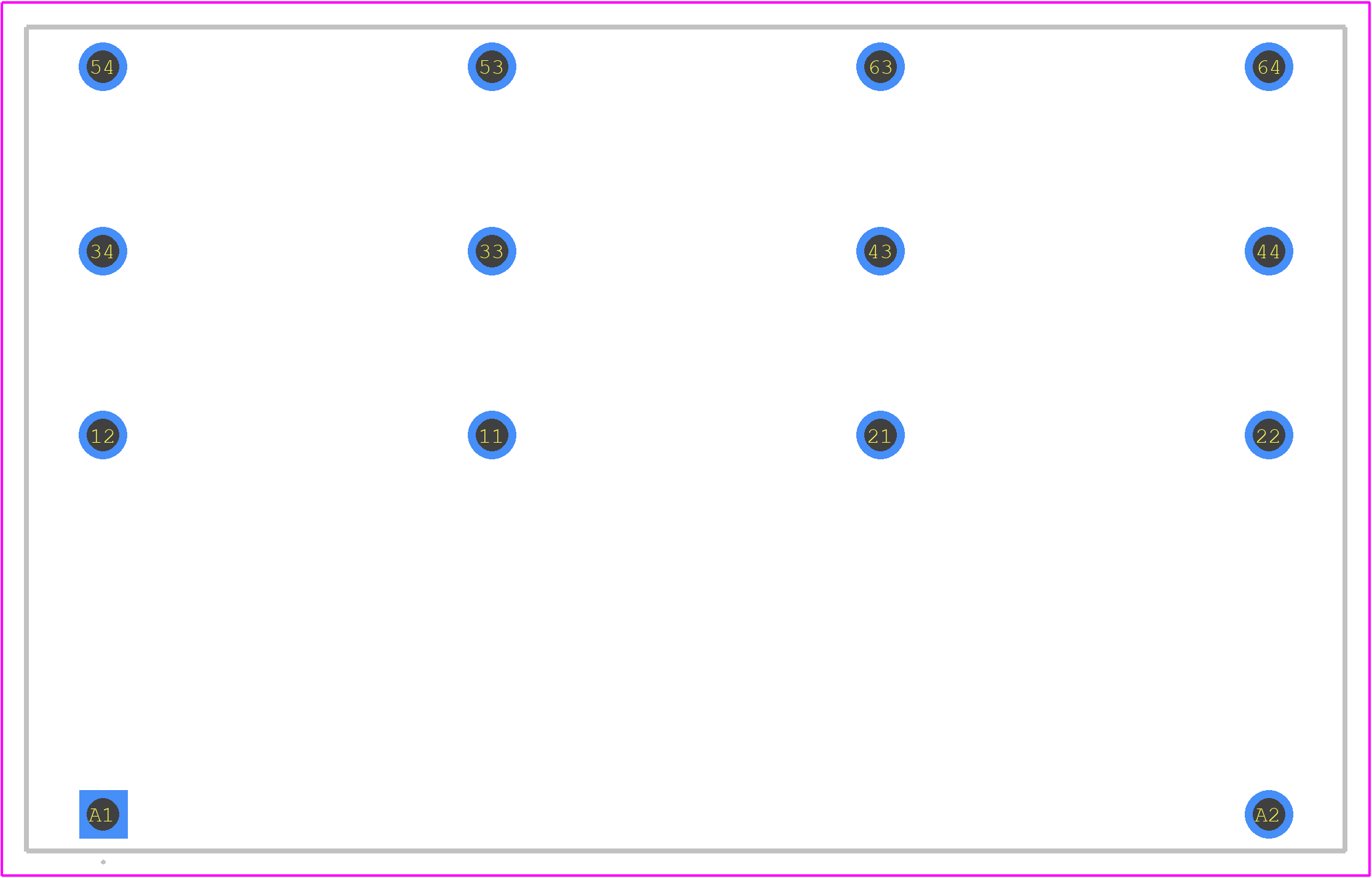

SIF 422 24VDC - ELESTA PCB footprint - Other - Other - SIF 422 24VDC-3

3D Models

SIF 422 24VDC - ELESTA - 3D model - Other - SIF 422 24VDC-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIF 422 24VDC
Part Number SIF 422 24VDC
Manufacturer ELESTA
Pin Count 14
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SIF 422 24VDC-3
Released Date May 11, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SIF 422 24VDC Details

Manufacturer Part Number:
SIF 422 24VDC
Manufacturer:
ELESTA GmbH
