SIHG039N60EF-GE3 - Vishay

Description: MOSFET EF Series Power MOSFET With Fast Body Diode; 4th Gen E Series Technology

Download SIHG039N60EF-GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

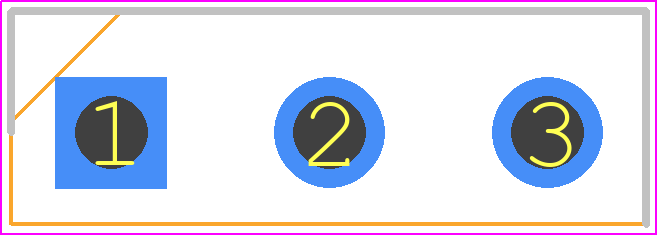

SIHG039N60EF-GE3 - Vishay PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO 247 AC
click to zoom
3D Models
SIHG039N60EF-GE3 - Vishay  - 3D model - Transistor Outline, Vertical - TO 247 AC
click to zoom

SIHG039N60EF-GE3 Details

  • Manufacturer Part Number:

    SIHG039N60EF-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.22

  • Avalanche Energy Rating (Eas):

    508 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    61 A

  • Drain-source On Resistance-Max:

    0.04 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    7 pF

  • JEDEC-95 Code:

    TO-247AC

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    357 W

  • Pulsed Drain Current-Max (IDM):

    196 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    345 ns

  • Turn-on Time-Max (ton):

    422 ns

SIHG039N60EF-GE3 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the SIHG039N60EF-GE3 is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using a thermal interface material, and maintaining a low thermal resistance between the module and heat sink.
  • The recommended gate resistor value for the SIHG039N60EF-GE3 is typically in the range of 10 ohms to 20 ohms, but it may vary depending on the specific application and switching frequency.
  • Yes, the SIHG039N60EF-GE3 can be used in a parallel configuration, but it's essential to ensure that the modules are properly matched, and the gate drive and control circuits are designed to handle the parallel configuration.
  • The maximum allowable voltage transient for the SIHG039N60EF-GE3 is typically around 10% to 15% above the maximum rated voltage, but it's recommended to consult the datasheet and application notes for specific guidance.
