SII3112ACT144 - Lattice Semiconductor

SII3112ACT144 Details

• Manufacturer Part Number:

  SII3112ACT144

• Part Life Cycle Code:

  Obsolete

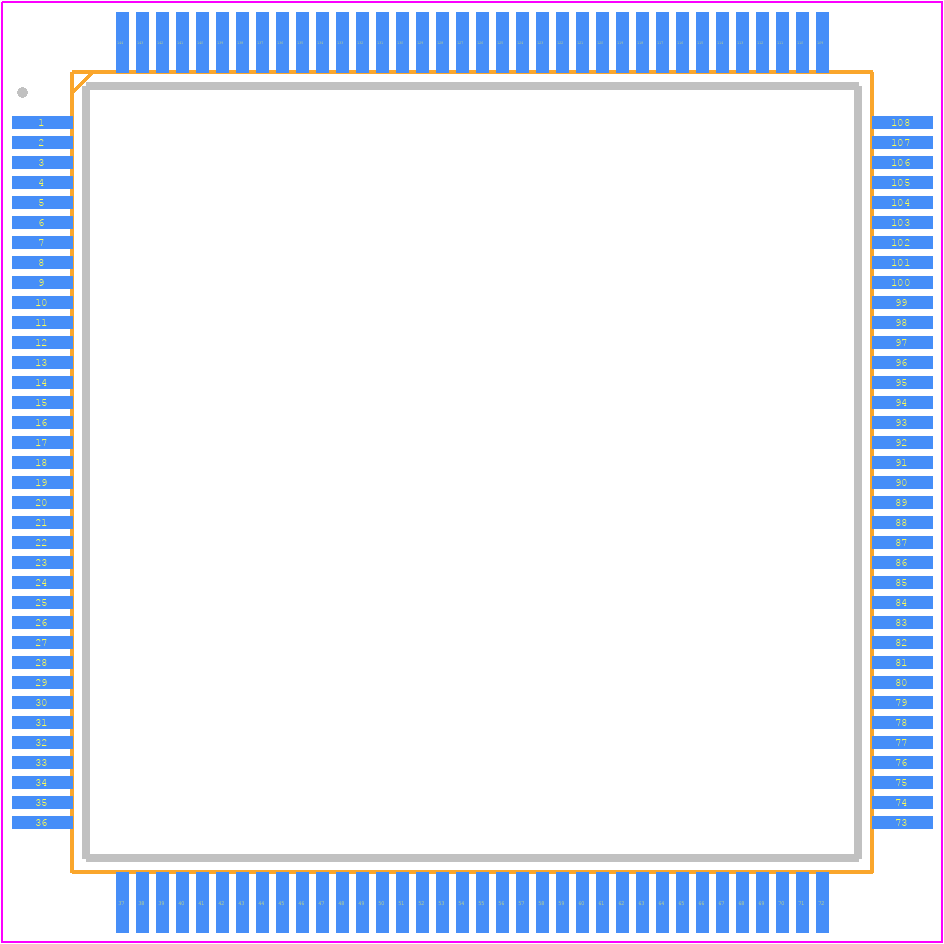

• Package Description:

  TQFP-144

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Lattice Semiconductor Corporation

• YTEOL:

  0

• Address Bus Width:

  32

• Clock Frequency-Max:

  100 MHz

• Data Transfer Rate-Max:

  150 MBps

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PQFP-G144

• Length:

  20 mm

• Number of Terminals:

  144

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  1.89 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, PCI
