Part Image

SIJ462DP-T1-GE3 - Vishay

Description: MOSFET 60V Vds 20V Vgs PowerPAK SO-8L

Download SIJ462DP-T1-GE3 Model

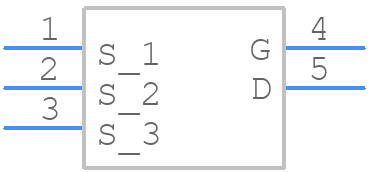

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

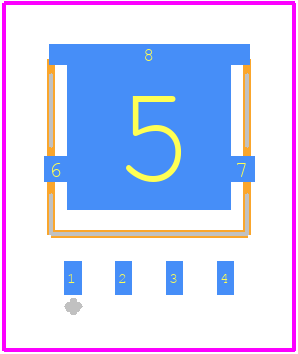

SIJ462DP-T1-GE3 - Vishay PCB footprint - Other - Other - PowerPAK SO-8L Single-1
click to zoom
3D Models
SIJ462DP-T1-GE3 - Vishay  - 3D model - Other - PowerPAK SO-8L Single-1
click to zoom

SIJ462DP-T1-GE3 Details

  • Manufacturer Part Number:

    SIJ462DP-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SO-8L, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    20 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    46.5 A

  • Drain-source On Resistance-Max:

    0.008 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSSO-G4

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    100 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SIJ462DP-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SIJ462DP-T1-GE3 is a pad layout with a minimum size of 2.5 mm x 2.5 mm, with a 1.5 mm x 1.5 mm thermal pad in the center. This ensures proper heat dissipation and minimizes thermal resistance.
  • While the SIJ462DP-T1-GE3 has a maximum junction temperature of 175°C, it's recommended to operate it at a maximum temperature of 150°C to ensure reliability and longevity. Exceeding this temperature may affect the device's performance and lifespan.
  • To ensure proper soldering, use a soldering iron with a temperature of 260°C to 280°C, and apply a solder paste with a melting point of 217°C to 221°C. Use a reflow oven with a peak temperature of 240°C to 250°C, and follow the recommended soldering profile in the datasheet.
  • The maximum allowed voltage derating for the SIJ462DP-T1-GE3 is 80% of the maximum rated voltage. This means that if the device is rated for 1200 V, the maximum allowed voltage derating would be 960 V.
  • Yes, the SIJ462DP-T1-GE3 can be used in a parallel configuration to increase the overall current handling capability. However, it's essential to ensure that the devices are properly matched and that the thermal management is adequate to prevent overheating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIJ462DP-T1-GE3 Overview

Use the download button to access the SIJ462DP-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIJ46, or try a keyword search, such as Power Field-Effect Transistors
