SIM-14+ footprint, schematic symbol and 3D model by Mini-Circuits

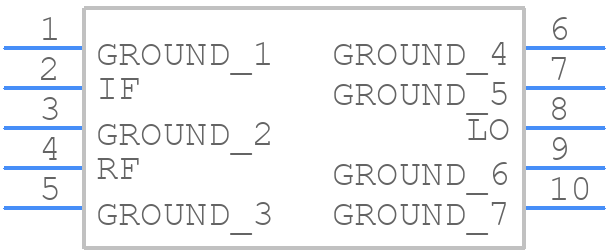

Symbol

click to zoom

PCB Footprints

SIM-14+ - Mini-Circuits PCB footprint - Other - Other - SIM-14+-1

click to zoom

3D Models

SIM-14+ - Mini-Circuits - 3D model - Other - SIM-14+-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIM-14+
Part Number SIM-14+
Manufacturer Mini-Circuits
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SIM-14+-1
Released Date Feb 19, 2022
Last Modified Date Feb 11, 2025 1:46 PM UTC
Pinout / Pin List Click Here (Member Only)

SIM-14+ Details

Manufacturer Part Number:
SIM-14+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
HV1195, 8 PIN
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
7
Additional Feature:
HIGH ISOLATION
Construction:
COMPONENT
Conversion Loss-Max:
9.5 dB
Input Power-Max (CW):
17 dBm
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
8
Operating Frequency-Max:
10000 MHz
Operating Frequency-Min:
3700 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
CERAMIC
Package Equivalence Code:
SOLCC8,.18
RF/Microwave Device Type:
DOUBLE BALANCED
Surface Mount:
YES
Terminal Finish:
PALLADIUM SILVER
VSWR-Max:
6.33

SIM-14+ Frequently Asked Questions (FAQs)

Mini-Circuits provides a recommended PCB layout and footprint for the SIM-14+ in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The SIM-14+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the impedance of your system to the SIM-14+.
The SIM-14+ can handle up to 1W of input power. Exceeding this limit may cause damage to the device or affect its performance.
The SIM-14+ is rated for operation up to 85°C. However, it's essential to derate the power handling and consider thermal management when operating in high-temperature environments.
To troubleshoot issues with the SIM-14+, start by checking the power supply, input signal, and output load. Use a spectrum analyzer or oscilloscope to verify the input and output signals. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

Community Provided

System Verified

Community Approved

SIM-14+ Overview

Use the download button to access the SIM-14+ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SIM-1, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
