SIM-153MH+ - Mini-Circuits

Description: RF Mixer DBL BAL MIX / SURF MT / RoHS

Download SIM-153MH+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

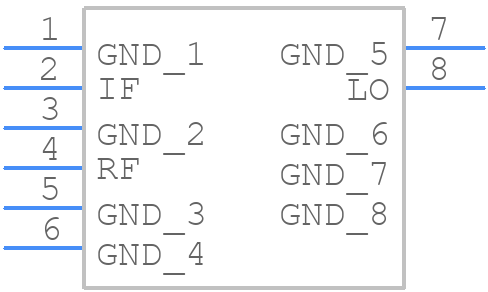

Symbol
SIM-153MH+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SIM-153MH+ - Mini-Circuits PCB footprint - Other - Other - HV1195_2025
click to zoom
3D Models
SIM-153MH+ - Mini-Circuits - 3D model - Other - HV1195_2025
click to zoom

SIM-153MH+ Details

  • Manufacturer Part Number:

    SIM-153MH+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    HIGH ISOLATION

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9.6 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    15000 MHz

  • Operating Frequency-Min:

    3200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.18

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    PALLADIUM SILVER

  • VSWR-Max:

    25.34

SIM-153MH+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the SIM-153MH+. It's recommended to use a solid ground plane, and to connect the device's ground pins to the ground plane using vias. The input and output tracks should be kept as short as possible and shielded from other signals.
  • The SIM-153MH+ requires a bias voltage of 5V and a bias current of 100mA. Ensure that the bias voltage is well-regulated and decoupled to prevent noise and ripple from affecting the device's performance.
  • The SIM-153MH+ can handle up to 1W of input power. Exceeding this limit may cause damage to the device or affect its performance.
  • Common issues can be troubleshooted by checking the PCB layout, grounding scheme, and biasing. Ensure that the device is properly decoupled and that there are no unwanted feedback paths. Also, check for any signs of overheating or damage to the device.
  • Yes, the SIM-153MH+ has a maximum operating temperature of 85°C. Ensure that the device is properly heat-sinked and that there is adequate airflow to prevent overheating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIM-153MH+ Overview

Use the download button to access the SIM-153MH+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIM-1, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
