SIM-193H+ - Mini-Circuits

Description: RF Mixer DBL BAL MIX / SURF MT / RoHS

Download SIM-193H+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

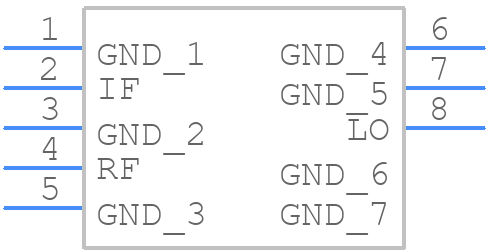

Symbol
SIM-193H+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SIM-193H+ - Mini-Circuits PCB footprint - Other - Other - HV1195_AD
click to zoom
3D Models
SIM-193H+ - Mini-Circuits - 3D model - Other - HV1195_AD
click to zoom

SIM-193H+ Details

  • Manufacturer Part Number:

    SIM-193H+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    HIGH ISOLATION

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    13 dB

  • Input Power-Max (CW):

    20.79 dBm

  • Operating Frequency-Max:

    19000 MHz

  • Operating Frequency-Min:

    7300 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • VSWR-Max:

    10.62

SIM-193H+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes (AN-60-001) and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Mini-Circuits offers a simulation model and application notes (AN-60-002) that provide guidance on biasing and tuning the SIM-193H+ for various applications. Additionally, consulting with a Mini-Circuits application engineer or using a third-party simulation tool can help optimize the design.
  • While the datasheet specifies a maximum input power of +20 dBm, the actual power handling capability depends on the specific application, operating frequency, and environmental conditions. It's recommended to consult with Mini-Circuits or perform thorough testing to determine the maximum power handling capability for your specific use case.
  • The SIM-193H+ is rated for operation up to +85°C, but its performance may degrade at higher temperatures. Mini-Circuits provides thermal derating guidelines in their datasheet, and it's essential to consider these factors when designing for high-temperature applications.
  • Yes, the SIM-193H+ is a sensitive device and requires proper ESD protection and handling precautions. Mini-Circuits recommends following standard ESD handling procedures, such as using wrist straps, anti-static bags, and ESD-safe work surfaces.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIM-193H+ Overview

Use the download button to access the SIM-193H+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIM-1, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
