Part Image

SIM-43LH+ - Mini-Circuits

Description: RF Mixer DBL BAL MIX / SURF MT / RoHS

Download SIM-43LH+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

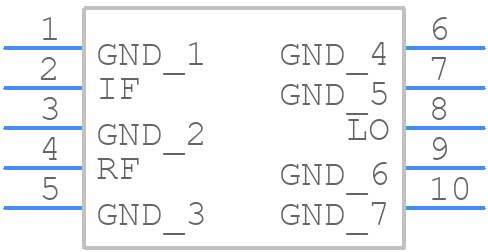

Symbol
SIM-43LH+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SIM-43LH+ - Mini-Circuits PCB footprint - Other - Other - SIM-43LH+-6
click to zoom
3D Models
SIM-43LH+ - Mini-Circuits - 3D model - Other - SIM-43LH+-6
click to zoom

SIM-43LH+ Details

  • Manufacturer Part Number:

    SIM-43LH+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CERAMIC, CASE HV1195, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8.2 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    4200 MHz

  • Operating Frequency-Min:

    824 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.18

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    PALLADIUM SILVER

  • VSWR-Max:

    10.57

SIM-43LH+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The SIM-43LH+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator tool on their website to help with the design.
  • The maximum power handling of the SIM-43LH+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
  • The SIM-43LH+ is rated for operation up to 85°C. While it can tolerate high temperatures, its performance may degrade above 70°C. If your application requires operation above 85°C, consider using a different device or consulting with Mini-Circuits for custom solutions.
  • Common issues with the SIM-43LH+ include poor return loss, high insertion loss, or oscillations. To troubleshoot, check the PCB layout, impedance matching, and power handling. Consult the datasheet and application notes for guidance, and contact Mini-Circuits' technical support if needed.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIM-43LH+ Overview

Use the download button to access the SIM-43LH+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIM-4, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
