SIM-63LH+ - Mini-Circuits

Description: RF Mixer DBL BAL MIX / SURF MT / RoHS

Download SIM-63LH+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

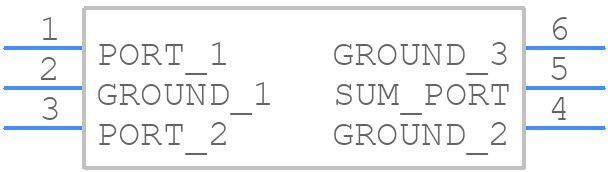

SIM-63LH+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SIM-63LH+ - Mini-Circuits PCB footprint - Other - Other - SIM-63LH+-3
click to zoom
3D Models
SIM-63LH+ - Mini-Circuits - 3D model - Other - SIM-63LH+-3
click to zoom

SIM-63LH+ Details

  • Manufacturer Part Number:

    SIM-63LH+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HV1195, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    HIGH ISOLATION

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9.3 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    750 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.18

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    PALLADIUM SILVER

  • VSWR-Max:

    7.05

SIM-63LH+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator tool on their website, which can help you determine the required components and their values.
  • The maximum power handling capability of the SIM-63LH+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to 1W of continuous power. It's essential to derate the power handling capability based on the operating frequency and temperature.
  • Yes, the SIM-63LH+ is designed to meet the requirements of high-reliability and space-constrained applications. It's built with a ruggedized package and has a low profile, making it suitable for use in aerospace, defense, and other demanding environments.
  • Mini-Circuits provides a troubleshooting guide on their website, which covers common issues such as insertion loss, return loss, and impedance mismatch. It's essential to follow proper troubleshooting procedures to identify and resolve issues quickly and efficiently.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIM-63LH+ Overview

Use the download button to access the SIM-63LH+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIM-6, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
