SIP12108ADMP-T1GE4 - Vishay

Description: Conv DC-DC 2.8V to 5.5V Synchronous Step Down Single-Out 0.6V 5A 16-Pin QFN EP

Download SIP12108ADMP-T1GE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

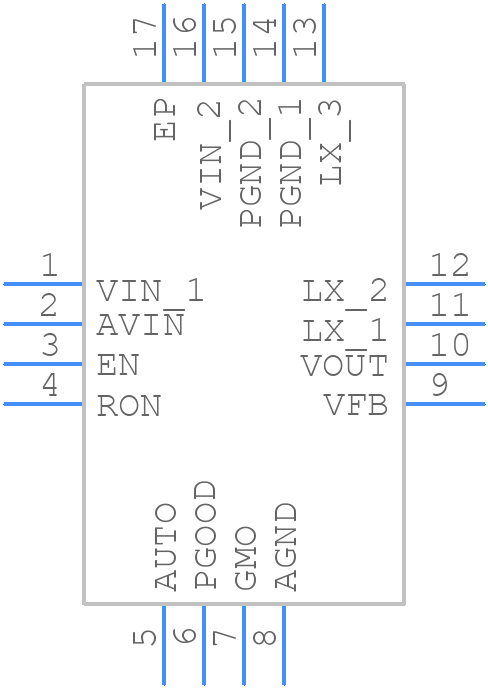

SIP12108ADMP-T1GE4 - Vishay - PCB symbol
click to zoom
PCB Footprints
SIP12108ADMP-T1GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3_1
click to zoom
3D Models
SIP12108ADMP-T1GE4 - Vishay - 3D model - Quad Flat No-Lead - QFN16 3x3_1
click to zoom

SIP12108ADMP-T1GE4 Details

  • Manufacturer Part Number:

    SIP12108ADMP-T1GE4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 4.675V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.95 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

SIP12108ADMP-T1GE4 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SIP12108ADMP-T1GE4 is a 1210-sized pad with a minimum pad size of 2.5mm x 1.25mm and a maximum pad size of 3.5mm x 2.25mm, with a non-solder mask defined (NSMD) pad shape.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a solder paste with a melting point of 217°C to 220°C. Also, ensure the PCB is clean and free of oxidation, and use a soldering technique that minimizes thermal shock.
  • The maximum operating temperature range for the SIP12108ADMP-T1GE4 is -55°C to 150°C, with a derating of 1.33 mΩ/°C above 125°C.
  • Yes, the SIP12108ADMP-T1GE4 is suitable for high-frequency applications up to 1 GHz due to its low inductance and high-frequency impedance characteristics.
  • Store the SIP12108ADMP-T1GE4 in its original packaging or in a dry, cool place, away from direct sunlight and moisture. Avoid bending, flexing, or applying excessive mechanical stress to the component during handling and shipping.
