SIP12108DMP-T1GE4 - Vishay

Description: Conv DC-DC 2.8V to 5.5V Step Down Single-Out 0.6V 5A 16-Pin QFN EP T/R

Download SIP12108DMP-T1GE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

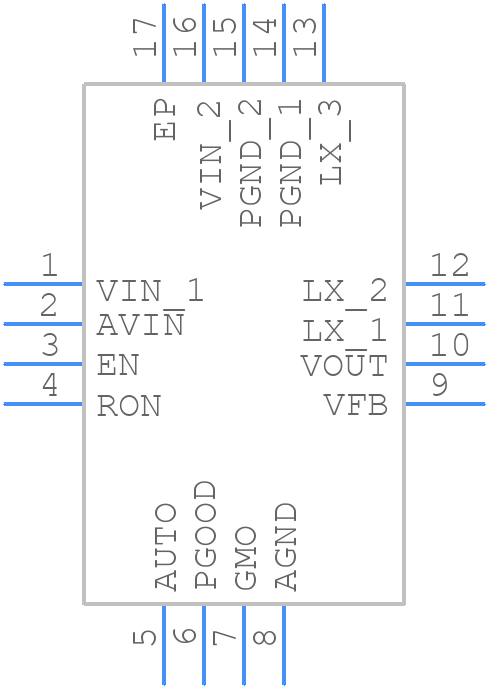

SIP12108DMP-T1GE4 - Vishay - PCB symbol
click to zoom
PCB Footprints
SIP12108DMP-T1GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4-16L
click to zoom
3D Models
SIP12108DMP-T1GE4 - Vishay - 3D model - Quad Flat No-Lead - QFN 4x4-16L
click to zoom

SIP12108DMP-T1GE4 Details

  • Manufacturer Part Number:

    SIP12108DMP-T1GE4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 4.675V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.95 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

SIP12108DMP-T1GE4 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SIP12108DMP-T1GE4 can be found in the Vishay Intertechnologies' application note 'Land Pattern Recommendations for Vishay's Power Metal Strip Resistors' (document number: 31051).
  • The thermal considerations for the SIP12108DMP-T1GE4 can be handled by following the guidelines outlined in the Vishay Intertechnologies' application note 'Thermal Management of Power Metal Strip Resistors' (document number: 31052).
  • The maximum power rating for the SIP12108DMP-T1GE4 is 1210 mW, as specified in the datasheet. However, it's essential to consider the operating temperature, PCB layout, and airflow when designing the system to ensure the resistor operates within its specified power rating.
  • The SIP12108DMP-T1GE4 is suitable for high-frequency applications up to several hundred MHz. However, it's crucial to consider the resistor's self-resonant frequency, which is typically in the range of 100 MHz to 1 GHz, depending on the specific part number and PCB layout.
  • The recommended soldering profile for the SIP12108DMP-T1GE4 follows the IPC/J-STD-020D standard, with a peak temperature of 260°C (500°F) and a dwell time of 20-40 seconds.
