The recommended land pattern for the SIP12109DMP-T1-GE4 can be found in the Vishay Intertechnologies' application note AN10343, which provides detailed guidelines for PCB layout and assembly.
To ensure reliability in high-temperature applications, it is essential to follow the recommended derating guidelines provided in the datasheet. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
The maximum allowable voltage for the SIP12109DMP-T1-GE4 is 120% of the rated voltage, as specified in the datasheet. Exceeding this voltage may compromise the device's reliability and lifespan.
Yes, the SIP12109DMP-T1-GE4 is suitable for high-frequency applications. However, it is essential to consider the device's parasitic inductance and capacitance, as well as the PCB layout, to minimize signal degradation and ensure optimal performance.
To prevent damage, store the SIP12109DMP-T1-GE4 in its original packaging or an equivalent ESD-protective package. Avoid exposing the device to extreme temperatures, humidity, or physical stress during shipping and storage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIP12109DMP-T1-GE4 Overview

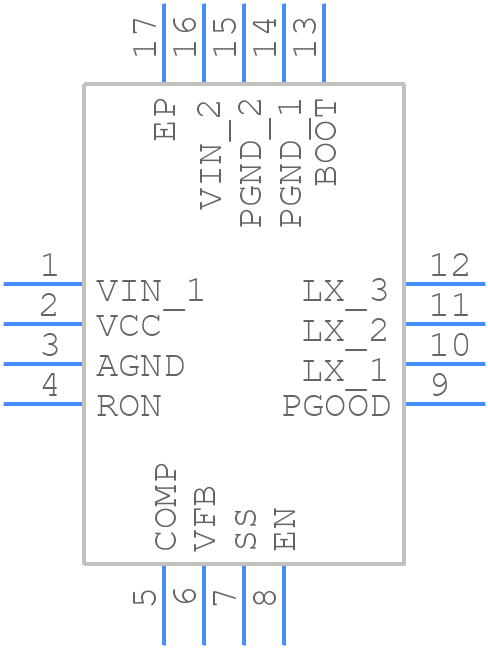

Use the download button to access the SIP12109DMP-T1-GE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIP12,
or try a keyword search, such as Switching Regulator or Controllers
