The recommended PCB footprint for the SIP32419DN-T1-GE4 is a 4-pin, 1.27mm pitch, dual-in-line package with a thermal pad. A sample footprint can be found in the Vishay Intertechnologies' application note or by contacting their technical support.
To ensure proper thermal management, ensure a good thermal interface between the device and the PCB, use a thermal pad or heat sink, and provide adequate airflow around the device. The thermal resistance of the device is specified in the datasheet.
The maximum operating temperature range for the SIP32419DN-T1-GE4 is -40°C to 150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range.
Yes, the SIP32419DN-T1-GE4 is qualified for automotive and high-reliability applications. However, it's essential to review the device's AEC-Q101 qualification and PPAP documentation to ensure it meets the specific requirements of your application.
To troubleshoot issues with the SIP32419DN-T1-GE4, start by reviewing the device's datasheet and application notes. Check for proper PCB layout, thermal management, and power supply decoupling. If issues persist, contact Vishay Intertechnologies' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIP32419DN-T1-GE4 Overview

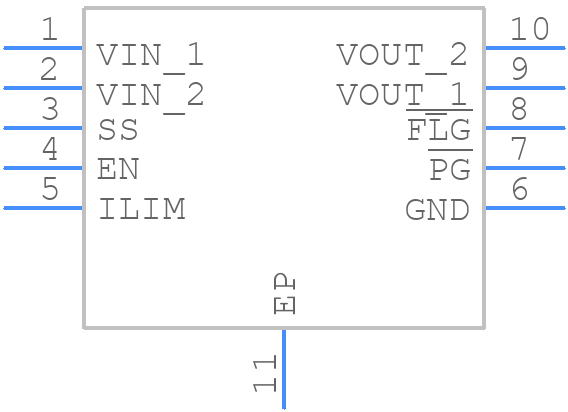

Use the download button to access the SIP32419DN-T1-GE4 schematic symbol, PCB footprint, and 3D model.
