SIP32429DN-T1-GE4 footprint, schematic symbol and 3D model by Vishay

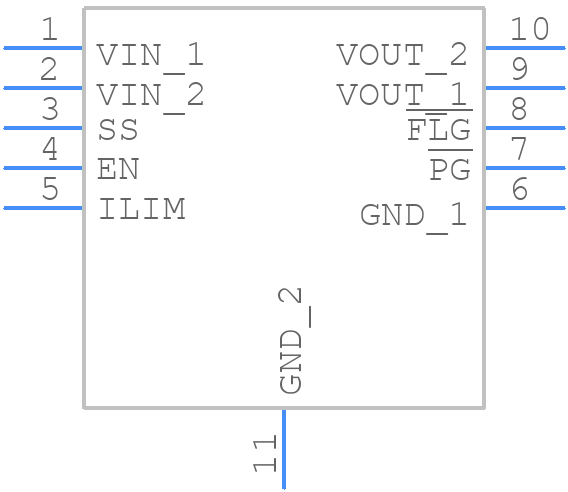

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIP32429DN-T1-GE4
Part Number SIP32429DN-T1-GE4
Manufacturer Vishay
Pin Count 11
Part Category Power Supply
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - DFN-10
Released Date Apr 3, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SIP32429DN-T1-GE4 Details

Manufacturer Part Number:
SIP32429DN-T1-GE4
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DFN-10
Country Of Origin:
Taiwan
HTS Code:
8542.39.00.60
Factory Lead Time:
14 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
9
Adjustable Threshold:
YES
Analog IC - Other Type:
SPST
JESD-30 Code:
S-PDSO-N10
Length:
3 mm
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
10
On-state Resistance-Max (Ron):
0.072 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC10,.11,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
6 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+4.8V
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
3 mm

SIP32429DN-T1-GE4 Frequently Asked Questions (FAQs)

The recommended PCB footprint for the SIP32429DN-T1-GE4 is a 4-pin, 1.5mm x 1.5mm, 0.5mm pitch QFN package. A recommended land pattern is available in the Vishay Intertechnologies' application note AN81193.
To ensure proper soldering, follow the recommended soldering profile: peak temperature 260°C, time above 217°C 60s, and time above 183°C 150s. Use a solder with a melting point below 217°C. Refer to the Vishay Intertechnologies' application note AN81193 for more details.
The maximum operating temperature range for the SIP32429DN-T1-GE4 is -40°C to 125°C. However, the device can be stored at temperatures between -55°C and 150°C.
Handle the SIP32429DN-T1-GE4 by the body, avoiding touching the pins or electrical connections. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Store the devices in their original packaging or an anti-static bag.
The recommended input voltage range for the SIP32429DN-T1-GE4 is 2.5V to 5.5V. Operating the device outside this range may affect its performance and reliability.
