SIP512-24VDC - ELESTA

Description: PCB Mount Force Guided Relay, 24V dc Coil Voltage, 16A Switching Current, 4PNO, SPNC, SPNO

Download SIP512-24VDC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SIP512-24VDC model

Email notifications will be applied after download.

Send part feedback

Symbol

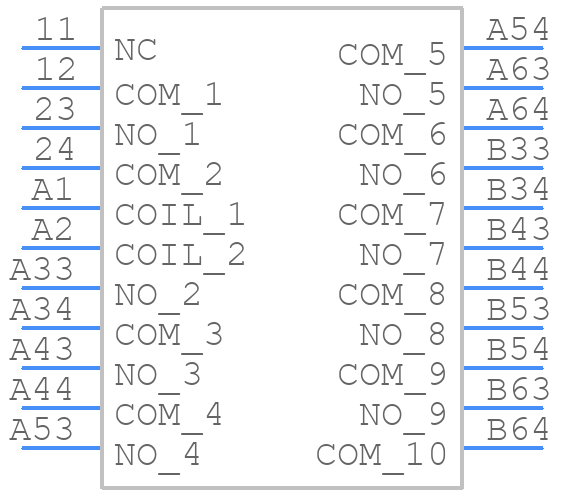

SIP512-24VDC - ELESTA - PCB symbol

PCB Footprints

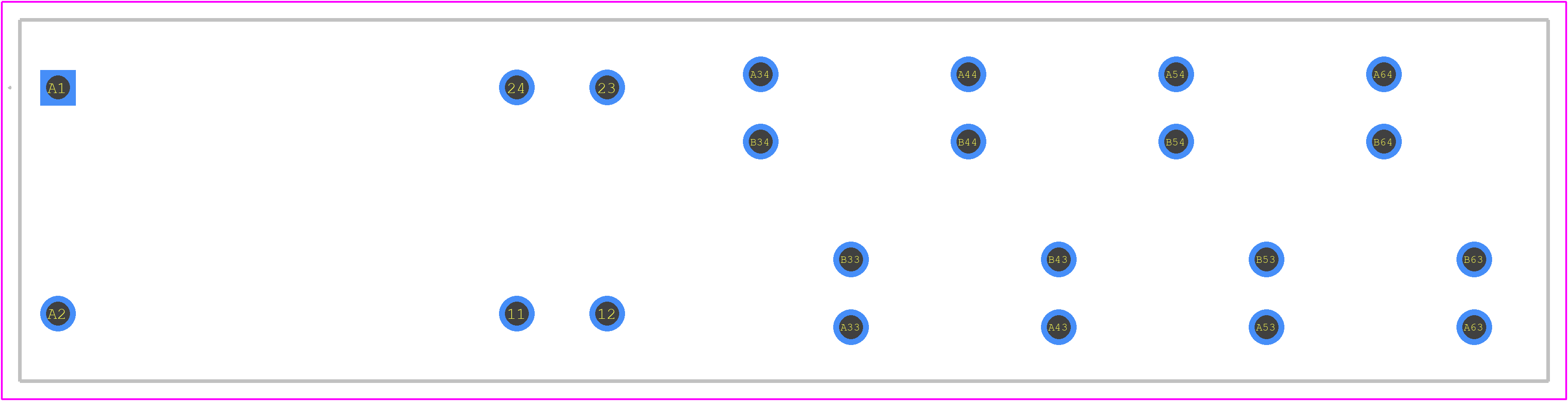

SIP512-24VDC - ELESTA PCB footprint - Other - Other - SIP512-24VDC-1

3D Models

SIP512-24VDC - ELESTA - 3D model - Other - SIP512-24VDC-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIP512-24VDC
Part Number SIP512-24VDC
Manufacturer ELESTA
Pin Count 22
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SIP512-24VDC-1
Released Date Mar 18, 2023
Last Modified Date Mar 19, 2023 6:25 AM UTC
