SIR1-03-L-S-K-TR footprint, schematic symbol and 3D model by SAMTEC

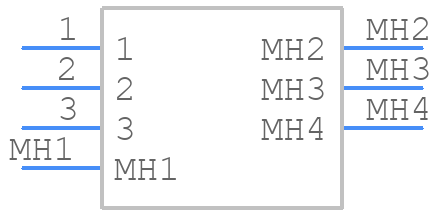

Symbol

click to zoom

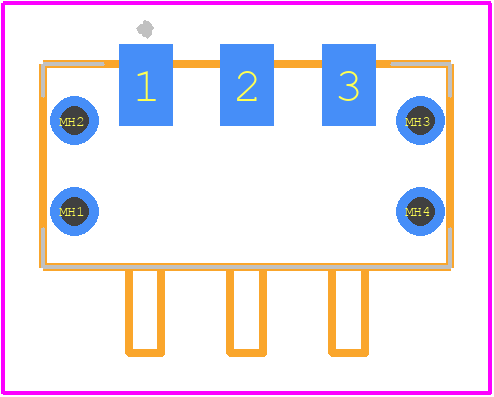

PCB Footprints

SIR1-03-L-S-K-TR - SAMTEC PCB footprint - Other - Other - SIR1-03-L-S-K-TR-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIR1-03-L-S-K-TR
Part Number SIR1-03-L-S-K-TR
Manufacturer SAMTEC
Pin Count 7
Part Category Connector
Package Category Other
Footprint Name Other - SIR1-03-L-S-K-TR-1
Released Date May 5, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

SIR1-03-L-S-K-TR Details

Manufacturer Part Number:
SIR1-03-L-S-K-TR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
13
Board Mounting Option:
HOLE 0.028
Body Breadth:
0.236 inch
Body Depth:
0.2 inch
Body Length:
0.4 inch
Connector Type:
PCB CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
COMPRESSION
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Contact Pitch:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Packing Method:
TR
Plating Thickness:
10u inch
Rated Current (Signal):
2.6 A
Terminal Pitch:
2.54 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
6

SIR1-03-L-S-K-TR Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
Yes, the SIR1-03-L-S-K-TR is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
The operating temperature range for the SIR1-03-L-S-K-TR is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
Yes, the SIR1-03-L-S-K-TR is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The mating cycle life of the SIR1-03-L-S-K-TR is 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
