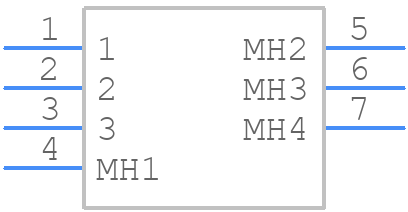

SIR1-03-S-S-K-TR - SAMTEC - PCB symbol
click to zoom
PCB Footprints

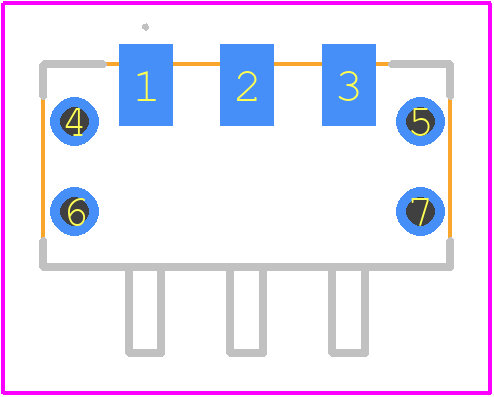

SIR1-03-S-S-K-TR - SAMTEC PCB footprint - Other - Other - SIR1-03-S-S-K-TR-2
click to zoom
3D Models
SIR1-03-S-S-K-TR - SAMTEC - 3D model - Other - SIR1-03-S-S-K-TR-2
click to zoom

SIR1-03-S-S-K-TR Details

  • Manufacturer Part Number:

    SIR1-03-S-S-K-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    13

  • Board Mounting Option:

    HOLE 0.028

  • Body Breadth:

    0.236 inch

  • Body Depth:

    0.2 inch

  • Body Length:

    0.4 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    COMPRESSION

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Packing Method:

    TR

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    2.6 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

SIR1-03-S-S-K-TR Frequently Asked Questions (FAQs)

  • The recommended mating sequence for SIR1-03-S-S-K-TR is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the SIR1-03-S-S-K-TR is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibration levels up to 10G.
  • The maximum operating temperature for SIR1-03-S-S-K-TR is 125°C. However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
  • The SIR1-03-S-S-K-TR has a sealed design, but it's not fully waterproof. It can withstand some humidity, but it's not recommended for use in submerged or wet environments. If you need a waterproof connector, consider using a different series or adding additional sealing measures.
  • The recommended torque for the screw locks on SIR1-03-S-S-K-TR is 0.5-1.5 in-lbs (0.056-0.169 Nm). Over-tightening can damage the connector, so it's essential to follow the recommended torque specification.
