Part Image

SiT5155AI-FK-33VT-20.000000X - SiTime

Description: TCXO Oscillators 20MHz 3.3V 0.5ppm -40 to 85C ±0.5 ppm Elite Platform Precision Super-TCXO for GNSS/GPS

Download SiT5155AI-FK-33VT-20.000000X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

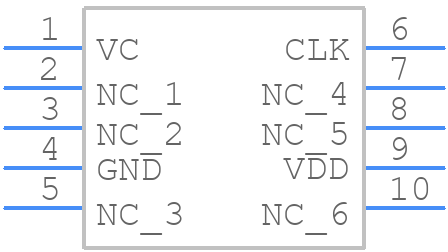

Symbol
SiT5155AI-FK-33VT-20.000000X - SiTime - PCB symbol
click to zoom
PCB Footprints
SiT5155AI-FK-33VT-20.000000X - SiTime PCB footprint - Other - Other - 5. 0 x3. 2 mm
click to zoom
3D Models
SiT5155AI-FK-33VT-20.000000X - SiTime - 3D model - Other - 5. 0 x3. 2 mm
click to zoom

SiT5155AI-FK-33VT-20.000000X Details

  • Manufacturer Part Number:

    SIT5155AI-FK-33VT-20.000000X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CQFN-10

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    5.75

  • Additional Feature:

    MIL-STD-883F

  • Aging:

    1 PPM/YEAR

  • Control Voltage-Max:

    2.97 V

  • Control Voltage-Min:

    0.33 V

  • Fall Time-Max:

    1.9 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Deviation/Pullability:

    6.25 ppm

  • Frequency Stability:

    0.5%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    20 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC10,.12X.2,58/52/48

  • Physical Dimension:

    5.15mm x 3.35mm x 1.06mm

  • Rise Time-Max:

    1.9 ns

  • Supply Current-Max:

    57 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    GOLD OVER NICKEL

SiT5155AI-FK-33VT-20.000000X Frequently Asked Questions (FAQs)

  • SiTime recommends following the PCB layout guidelines provided in the application note AN10005, which includes recommendations for pad layout, trace routing, and decoupling capacitors to minimize noise and ensure optimal performance.
  • The SIT5155AI-FK-33VT-20.000000X is a programmable oscillator, and the frequency can be configured using the SiTime Programmer software or by using the One-Time Programmable (OTP) feature. Refer to the datasheet and programming guide for specific instructions.
  • The SIT5155AI-FK-33VT-20.000000X has an operating temperature range of -40°C to +85°C, making it suitable for a wide range of industrial and commercial applications.
  • The SIT5155AI-FK-33VT-20.000000X is a standard CMOS-compatible oscillator and can be used with most microcontrollers and FPGAs. However, it's recommended to verify the oscillator's specifications with the specific requirements of your microcontroller or FPGA to ensure compatibility.
  • The typical start-up time for the SIT5155AI-FK-33VT-20.000000X is around 2-5 ms, depending on the specific configuration and operating conditions. Refer to the datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SiT5155AI-FK-33VT-20.000000X Overview

Use the download button to access the SiT5155AI-FK-33VT-20.000000X schematic symbol, PCB footprint, and 3D model.
