Description:The SiT5156 Super-TCXO™ is a highly flexible, tight-stability oscillator for high-reliability systems in industrial, server and storage, networking and telecom, 5 x 3.2mm Package
SiTime recommends a 4-layer PCB with a dedicated ground plane, and to keep the oscillator away from high-frequency signals and noise sources. A good layout practice is to use a symmetrical layout, with the oscillator in the center, and to minimize the distance between the oscillator and the crystal.
The SIT5156AICFA-33VT-40.000000 has a CMOS output, which requires a 15pF to 30pF load capacitance for proper termination. Ensure that the load capacitance is within this range to prevent signal degradation and ensure reliable operation.
The SIT5156AICFA-33VT-40.000000 is rated for operation from -40°C to +85°C. However, it's essential to note that the oscillator's frequency stability and accuracy may degrade at extreme temperatures.
SiTime oscillators are designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to use a vibration-resistant oscillator or to implement additional mechanical protection, such as potting or conformal coating, to ensure reliable operation.
The SIT5156AICFA-33VT-40.000000 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap, mat, or workstation, and ensure that all equipment is properly grounded.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SiT5156AICFA-33VT-40.000000 Overview

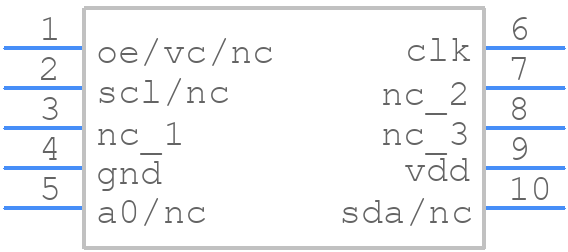

Use the download button to access the SiT5156AICFA-33VT-40.000000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SiT51,
or try a keyword search, such as TCVCXO
