SiT5157AI-FA-33VT-100.000000 - SiTime

Description: 60 MHz to 220 MHz, ±0.5 to ±2.5 ppm, Elite Platform Super-TCXO, 5.0 mm x 3.2 mm Package

Download SiT5157AI-FA-33VT-100.000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

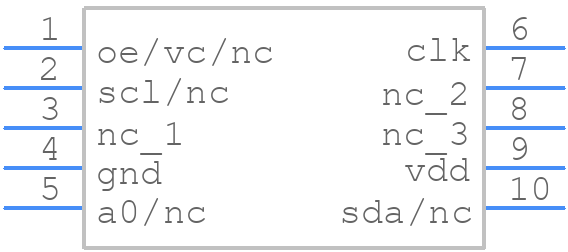

SiT5157AI-FA-33VT-100.000000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SiT5157AI-FA-33VT-100.000000 - SiTime PCB footprint - Other - Other - SiT5157
click to zoom
3D Models
SiT5157AI-FA-33VT-100.000000 - SiTime - 3D model - Other - SiT5157
click to zoom

SiT5157AI-FA-33VT-100.000000 Details

  • Manufacturer Part Number:

    SIT5157AI-FA-33VT-100.000000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CQFN-10

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    6.5

  • Additional Feature:

    MIL-STD-883F

  • Aging:

    1 PPM/YEAR

  • Control Voltage-Max:

    2.97 V

  • Control Voltage-Min:

    0.33 V

  • Fall Time-Max:

    1.9 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Deviation/Pullability:

    6.25 ppm

  • Frequency Stability:

    1%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC10,.12X.2,58/52/48

  • Physical Dimension:

    5.15mm x 3.35mm x 1.06mm

  • Rise Time-Max:

    1.9 ns

  • Supply Current-Max:

    66 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

SiT5157AI-FA-33VT-100.000000 Frequently Asked Questions (FAQs)

  • SiTime recommends following the PCB layout guidelines provided in the application note AN10005, which includes recommendations for decoupling, grounding, and signal routing to minimize noise and ensure optimal performance.
  • The SIT5157AI-FA-33VT-100.000000 is a programmable oscillator, and the frequency can be configured using the SiTime Programmer software or by using the I2C interface to program the device. Refer to the datasheet and programming guide for more information.
  • The SIT5157AI-FA-33VT-100.000000 has an operating temperature range of -40°C to +85°C, but it can be extended to -55°C to +125°C with derating. Refer to the datasheet for more information on temperature derating.
  • Yes, the SIT5157AI-FA-33VT-100.000000 is designed for high-reliability applications and meets the requirements of various industry standards, including AEC-Q100 and MIL-STD-883. It also has a high MTBF (Mean Time Between Failures) rating.
  • The SIT5157AI-FA-33VT-100.000000 is not specifically designed for radiation-hardened applications, but SiTime offers other products that are designed for such applications. Contact SiTime for more information on their radiation-hardened products.
