SIT5503AI-WW033IB-16.384000 - SiTime

Description: 1 MHz – 60 MHz, Elite X™ ±5 ppb Precision Oscillator temperature, -40°C to 95°C

Download SIT5503AI-WW033IB-16.384000 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SIT5503AI-WW033IB-16.384000 model

Email notifications will be applied after download.

Send part feedback

Symbol

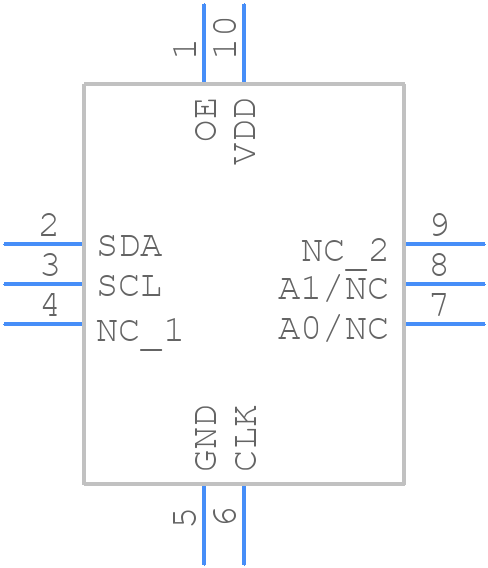

SIT5503AI-WW033IB-16.384000 - SiTime - PCB symbol

PCB Footprints

SIT5503AI-WW033IB-16.384000 - SiTime PCB footprint - Other - Other - 10L CQFN 7mm x 5mm x 2.2mm

3D Models

SIT5503AI-WW033IB-16.384000 - SiTime - 3D model - Other - 10L CQFN 7mm x 5mm x 2.2mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIT5503AI-WW033IB-16.384000
Part Number SIT5503AI-WW033IB-16.384000
Manufacturer SiTime
Pin Count 10
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - 10L CQFN 7mm x 5mm x 2.2mm
Released Date May 28, 2025
Last Modified Date May 28, 2025 9:25 AM UTC
Pinout / Pin List Click Here (Member Only)

SIT5503AI-WW033IB-16.384000 Details

Manufacturer Part Number:
SIT5503AI-WW033IB-16.384000
Manufacturer:
SiTime Corporation

Trust Checks

Community Provided

System Verified

Community Approved

SIT5503AI-WW033IB-16.384000 Overview

Use the download button to access the SIT5503AI-WW033IB-16.384000 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SIT55, or try a keyword search, such as TCXO
