SIT5711AI-KW-33E-10.000000 footprint, schematic symbol and 3D model by SiTime

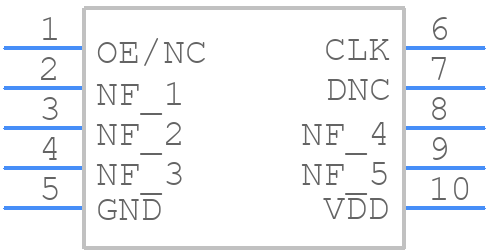

Symbol

PCB Footprints

3D Models

SIT5711AI-KW-33E-10.000000 Details

SiTime provides a recommended PCB layout guide for their oscillators, which includes guidelines for pad layout, trace routing, and component placement to ensure optimal performance and minimize noise coupling.
The SIT5711AI-KW-33E-10.000000 is a programmable oscillator, and the frequency can be configured using SiTime's programming software, TimeView, or by using a custom programming script. The specific configuration process may vary depending on the desired frequency and application.
The SIT5711AI-KW-33E-10.000000 has an operating temperature range of -40°C to +85°C, but it's recommended to check the specific temperature range for the desired application and to consult with SiTime's application notes for temperature-related considerations.
Proper termination is critical for oscillator performance. SiTime recommends using a 50-ohm termination resistor and a 0.01-uF capacitor in parallel with the output pin to ensure optimal signal integrity and minimize reflections.
The typical startup time for the SIT5711AI-KW-33E-10.000000 is around 5-10 ms, but this can vary depending on the specific application, power supply, and environmental conditions.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the SIT5711AI-KW-33E-10.000000 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SIT57, or try a keyword search, such as OCXO
