- Part Number SIZ340BDT-T1-GE3
- Manufacturer Vishay
- Pin Count 10
- Part Category MOSFET (N-Channel)
- Package Category Other
- Footprint Name Other - SIZ340BDT-T1-GE3-2
- Released Date Nov 16, 2021
- Last Modified Date Jan 5, 2024 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
SIZ340BDT-T1-GE3 Details
-
Manufacturer Part Number:
SIZ340BDT-T1-GE3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
Vishay Intertechnologies
-
YTEOL:
5
-
Avalanche Energy Rating (Eas):
5 mJ
-
Case Connection:
DRAIN
-
Configuration:
SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
-
DS Breakdown Voltage-Min:
30 V
SIZ340BDT-T1-GE3 Frequently Asked Questions (FAQs)
-
The recommended storage temperature range for SIZ340BDT-T1-GE3 is -40°C to 125°C, as per Vishay's general guidelines for storage and handling of semiconductor devices.
-
While the SIZ340BDT-T1-GE3 is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (> 80% RH) without proper protection, such as conformal coating or hermetic sealing, to prevent moisture-related failures.
-
The maximum allowable voltage derating for the SIZ340BDT-T1-GE3 is typically 80% of the maximum rated voltage, but this may vary depending on the specific application and operating conditions. Consult Vishay's application notes or contact their technical support for more information.
-
Yes, the SIZ340BDT-T1-GE3 is compatible with lead-free soldering processes, as it is a RoHS-compliant device. However, it's essential to follow Vishay's recommended soldering profiles and guidelines to ensure reliable assembly and operation.
-
The typical thermal resistance (RthJA) of the SIZ340BDT-T1-GE3 is around 40°C/W, but this value may vary depending on the specific application, PCB design, and operating conditions. Consult Vishay's thermal management guidelines for more information.
Trust Checks
Community Provided
System Verified
Community Approved
SIZ340BDT-T1-GE3 Overview

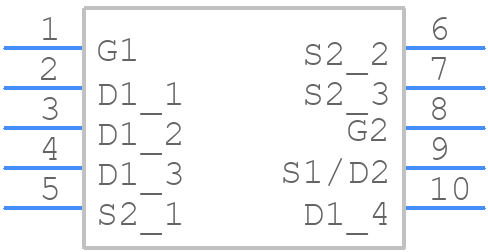

Use the download button to access the SIZ340BDT-T1-GE3 schematic symbol, PCB footprint, and 3D model.
