The recommended storage condition for SIZ980BDT-T1-GE3 is in a dry, cool place, away from direct sunlight and moisture. The ideal storage temperature range is between 20°C to 30°C (68°F to 86°F) with a relative humidity of 50% to 70%.
While the SIZ980BDT-T1-GE3 is rated for operation up to 150°C (302°F), it's essential to consider the derating curves and thermal management to ensure reliable operation. Consult the datasheet and application notes for guidance on high-temperature applications.
To prevent ESD damage, handle the SIZ980BDT-T1-GE3 with anti-static wrist straps, mats, or other ESD-protective equipment. Ensure the workspace and tools are grounded, and avoid touching the component's pins or leads.
The recommended soldering profile for the SIZ980BDT-T1-GE3 is a peak temperature of 260°C (500°F) with a dwell time of 10-30 seconds. Consult the datasheet and application notes for more detailed soldering guidelines.
The SIZ980BDT-T1-GE3 is a commercial-grade component, and its use in high-reliability or safety-critical applications may require additional testing, validation, and certification. Consult with Vishay Intertechnologies or a qualified reliability engineer for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIZ980BDT-T1-GE3 Overview

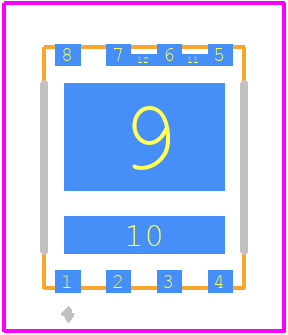

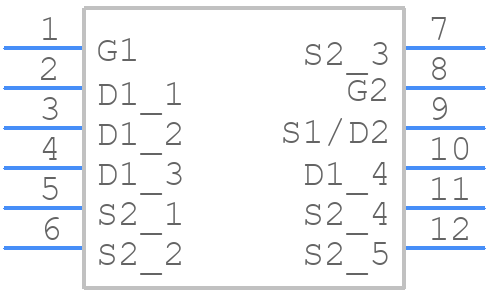

Use the download button to access the SIZ980BDT-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIZ98,
or try a keyword search, such as Power Field-Effect Transistors
