SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
40 A
Drain-source On Resistance-Max:
0.0075 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
34 pF
JESD-30 Code:
R-PDSO-N8
Number of Elements:
2
Number of Terminals:
8
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
20.2 W
Pulsed Drain Current-Max (IDM):
70 A
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
Turn-off Time-Max (toff):
45 ns
Turn-on Time-Max (ton):
50 ns
SIZ988DT-T1-GE3 Frequently Asked Questions (FAQs)
The recommended storage temperature range for SIZ988DT-T1-GE3 is -40°C to 125°C, as per Vishay's general guidelines for storage and handling of semiconductor devices.
While the SIZ988DT-T1-GE3 is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (> 80% RH) without proper protection, such as conformal coating or hermetic sealing, to prevent moisture-related failures.
The maximum allowable voltage transient for the SIZ988DT-T1-GE3 is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to limit voltage transients to ±10% of the maximum rated voltage to ensure reliable operation and prevent damage to the device.
The SIZ988DT-T1-GE3 is designed to meet the requirements of various automotive and industrial applications, which often involve vibration. However, it's essential to ensure that the device is properly mounted and secured to prevent mechanical stress and damage.
Vishay recommends following the IPC-J-STD-020D standard for soldering temperature profiles, which suggests a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to consult the datasheet and application notes for specific guidance on soldering and assembly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIZ988DT-T1-GE3 Overview

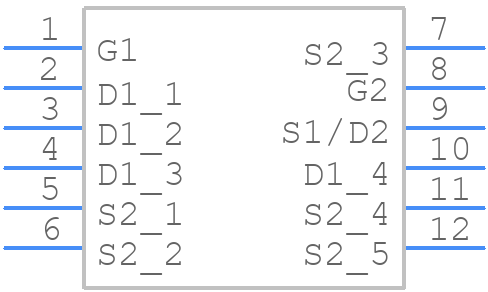

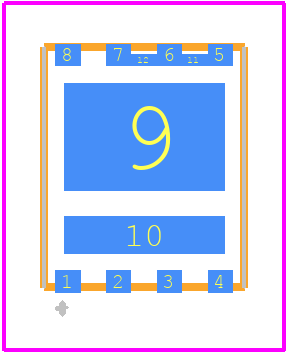

Use the download button to access the SIZ988DT-T1-GE3 schematic symbol, PCB footprint, and 3D model.
