The recommended land pattern for SIZF5302DT-T1-RE3 can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for surface-mount assembly of Vishay's SIZF series of Z-Foil resistors.
To handle the ESD sensitivity of SIZF5302DT-T1-RE3, follow proper ESD handling procedures, such as using an ESD wrist strap, ESD mat, or ESD bag. Also, ensure that the resistor is stored in its original packaging or an ESD-protective container when not in use.
The thermal resistance of SIZF5302DT-T1-RE3 is not explicitly stated in the datasheet. However, according to Vishay's application note AN430, the thermal resistance of SIZF series resistors is typically around 10-20°C/W. For more accurate information, contact Vishay's technical support or consult the resistor's thermal derating curve.
While the SIZF5302DT-T1-RE3 is a rugged resistor, it's essential to evaluate its suitability for high-vibration environments. Vishay recommends consulting their application note AN483, which provides guidelines for using SIZF series resistors in harsh environments. Additionally, consider performing vibration testing or consulting with Vishay's technical support to ensure the resistor meets your specific requirements.
To solder SIZF5302DT-T1-RE3, follow standard surface-mount soldering techniques. Ensure the soldering iron temperature is set between 250°C to 280°C, and use a solder with a melting point above 180°C. Avoid applying excessive heat or force, which can damage the resistor. Consult Vishay's application note AN483 for more detailed soldering guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIZF5302DT-T1-RE3 Overview

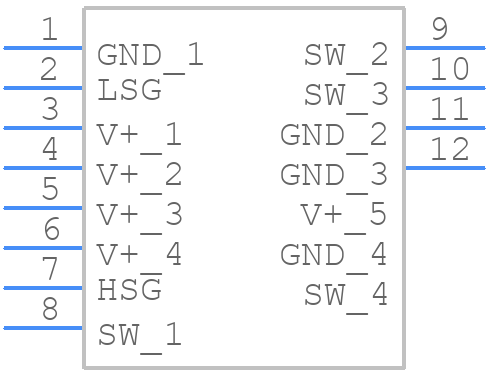

Use the download button to access the SIZF5302DT-T1-RE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIZF5,
or try a keyword search, such as Power Field-Effect Transistors
