SIZF918DT-T1-GE3 - Vishay

Description: VISHAY - SIZF918DT-T1-GE3 - Dual MOSFET, N Channel + Schottky, 30 V, 60 A, 0.0012 ohm, PowerPAIR, Surface Mount

Download SIZF918DT-T1-GE3 Model

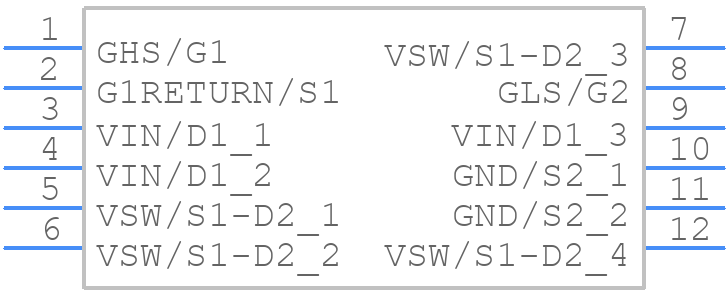

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

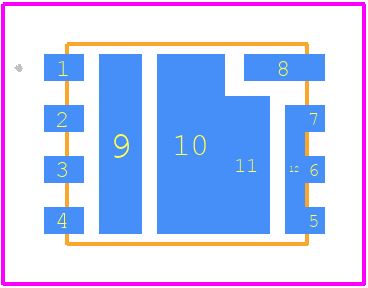

SIZF918DT-T1-GE3 - Vishay PCB footprint - Other - Other - PowerPAIR® 6 x 5 F Case
click to zoom
3D Models
SIZF918DT-T1-GE3 - Vishay  - 3D model - Other - PowerPAIR® 6 x 5 F Case
click to zoom

SIZF918DT-T1-GE3 Details

  • Manufacturer Part Number:

    SIZF918DT-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    11.3 mJ

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.0029 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    45 pF

  • JESD-30 Code:

    R-PDSO-N8

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    26.6 W

  • Pulsed Drain Current-Max (IDM):

    130 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    60 ns

  • Turn-on Time-Max (ton):

    125 ns

SIZF918DT-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for SIZF918DT-T1-GE3 is -40°C to 125°C, as per Vishay's storage and handling guidelines.
  • Yes, SIZF918DT-T1-GE3 is suitable for high-reliability applications due to its construction and Vishay's quality control processes, which ensure a high level of reliability and performance.
  • To prevent electrostatic discharge (ESD) damage, handle SIZF918DT-T1-GE3 components with ESD-protective equipment, such as wrist straps, mats, and bags, and follow proper ESD handling procedures.
  • The typical lead time for SIZF918DT-T1-GE3 can vary depending on the supplier, quantity, and region. However, it's usually around 8-12 weeks. It's recommended to check with authorized distributors or Vishay's customer service for the most up-to-date lead time information.
  • Yes, SIZF918DT-T1-GE3 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
