SJ-3571N - Same Sky

Description: 3.5 mm Right-Angle, SPDT Switch, Stereo Audio Jack Connector

Download SJ-3571N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

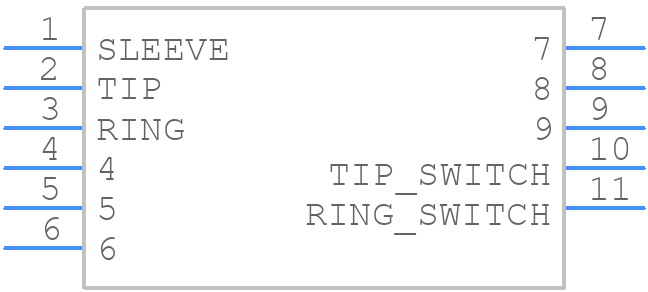

Symbol
SJ-3571N - Same Sky - PCB symbol
click to zoom
PCB Footprints
SJ-3571N - Same Sky PCB footprint - Other - Other - SJ-3571N-1
click to zoom
3D Models
SJ-3571N - Same Sky - 3D model - Other - SJ-3571N-1
click to zoom

SJ-3571N Details

  • Manufacturer Part Number:

    SJ-3571N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Same Sky

  • YTEOL:

    7

  • Audio Type:

    STEREO

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.236 inch

  • Body Depth:

    0.815 inch

  • Body Length:

    0.472 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    3.5MM AUDIO

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    50 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    5000 Cycles

  • Insertion Force-Max:

    29.4 N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYAMIDE66

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.091 inch

  • Termination Type:

    SOLDER

  • Withdrawl Force-Min:

    2.942 N

SJ-3571N Frequently Asked Questions (FAQs)

  • CUI Devices recommends a 4-layer PCB with a solid ground plane and a separate power plane for the SJ-3571N. Keep the input and output traces as short as possible and use a common mode choke to reduce EMI.
  • To ensure reliable operation in high-temperature environments, make sure to follow the recommended derating curves for the SJ-3571N. Also, consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The maximum cable length for the input and output connections of the SJ-3571N is 10 inches (25 cm). Exceeding this length may result in signal degradation and reduced performance.
  • Yes, the SJ-3571N can be used in a redundant or parallel configuration to achieve higher power output or improved reliability. However, consult with CUI Devices' application engineers to ensure proper design and implementation.
  • CUI Devices recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output of the SJ-3571N. The capacitors should be rated for the maximum operating voltage and have a temperature rating of at least 105°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SJ-3571N Overview

Use the download button to access the SJ-3571N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SJ-35, or try a keyword search, such as Audio/RCA Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
