SJ-3589ANG - Same Sky

Description: Phone Connectors 3.5 mm, Stereo, Right Angle, Through Hole, 3 Conductors, DPDT Switch, Kinked Pins, Audio Jack Connector

Download SJ-3589ANG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

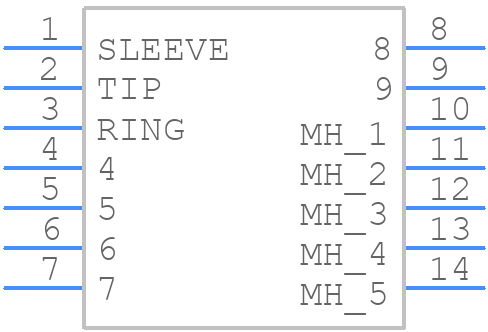

Symbol
SJ-3589ANG - Same Sky - PCB symbol
click to zoom

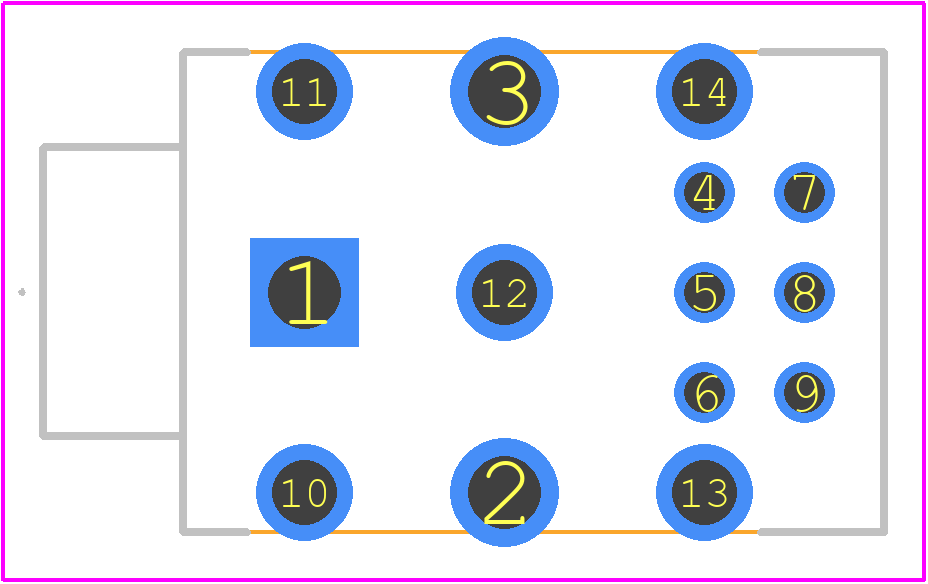

PCB Footprints
SJ-3589ANG - Same Sky PCB footprint - Other - Other - SJ-3589ANG-1
click to zoom
3D Models
SJ-3589ANG - Same Sky - 3D model - Other - SJ-3589ANG-1
click to zoom

SJ-3589ANG Details

  • Manufacturer Part Number:

    SJ-3589ANG

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Same Sky

  • YTEOL:

    0

  • Additional Feature:

    LOW PROFILE

  • Audio Type:

    STEREO

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body Breadth:

    0.413 inch

  • Body Depth:

    0.827 inch

  • Body Length:

    0.472 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    3.5MM AUDIO

  • Contact Gender:

    FEMALE

  • Contact Resistance:

    50 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    5000 Cycles

  • Insertion Force-Max:

    29.4 N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE66

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    1 A

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

SJ-3589ANG Frequently Asked Questions (FAQs)

  • CUI Devices recommends a PCB layout with a solid ground plane, minimal trace lengths, and a decoupling capacitor (e.g., 10nF) between the VCC and GND pins to reduce noise and ensure stable operation.
  • To ensure reliable operation in high-temperature environments, ensure proper heat sinking, keep the device away from heat sources, and follow the recommended operating temperature range (–40°C to +85°C).
  • The maximum allowable voltage on the output pins is VCC + 0.3V, but it's recommended to keep the output voltage within the specified output voltage range (1.8V to 3.3V) to ensure proper operation.
  • Yes, the SJ-3589ANG can be used in switching power supply applications, but ensure that the input voltage is within the recommended range (2.7V to 5.5V) and follow proper layout and decoupling guidelines to minimize noise and ensure stable operation.
  • The typical startup time for the SJ-3589ANG is around 10ms, but this can vary depending on the input voltage, output load, and PCB layout.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SJ-3589ANG Overview

Use the download button to access the SJ-3589ANG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SJ-35, or try a keyword search, such as Audio/RCA Connectors

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
