SJ1-3514N - Same Sky

SJ1-3514N Frequently Asked Questions (FAQs)

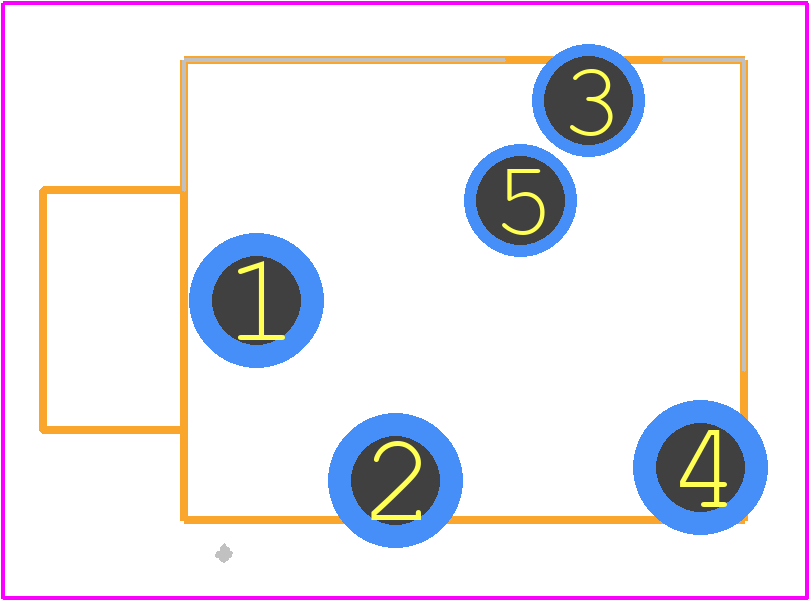

• What is the recommended PCB layout and land pattern for the SJ1-3514N?
  CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.
• How do I ensure reliable soldering and assembly of the SJ1-3514N?
  Follow the recommended soldering profile and assembly guidelines provided by CUI Devices, and ensure that the PCB is designed with adequate thermal relief and clearance around the component.
• What is the maximum operating temperature range for the SJ1-3514N?
  While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult with CUI Devices' technical support for specific guidance on temperature-related considerations.
• Can I use the SJ1-3514N in a high-vibration or high-shock environment?
  While the SJ1-3514N is designed to meet standard reliability requirements, it's crucial to evaluate the device's performance in your specific application environment. Consult with CUI Devices' technical support to discuss vibration and shock testing, and to determine if additional testing or customization is required.
• What are the ESD protection and handling requirements for the SJ1-3514N?
  CUI Devices recommends following standard ESD handling and protection procedures, such as using anti-static wrist straps, mats, and packaging materials. Additionally, ensure that the device is stored and handled in a controlled environment to prevent damage from electrostatic discharge.
