SJ1-3524NG - Same Sky

Description: 3.5 mm, Stereo, Right Angle, Through Hole, Isolated Ground, 3 Conductors, 1 Internal Switch, Audio Jack Connector

Download SJ1-3524NG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SJ1-3524NG - Same Sky - PCB symbol
click to zoom
PCB Footprints

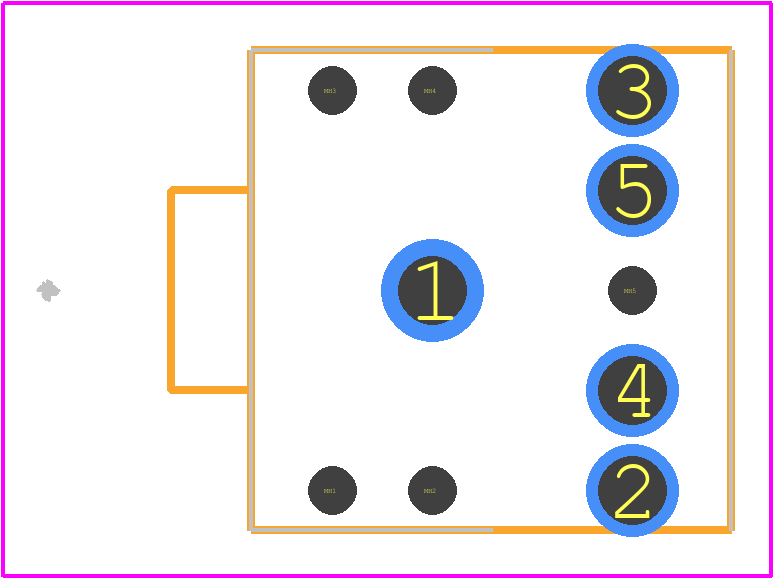

SJ1-3524NG - Same Sky PCB footprint - Other - Other - SJ1-3524NG-2
click to zoom
3D Models
SJ1-3524NG - Same Sky - 3D model - Other - SJ1-3524NG-2
click to zoom

SJ1-3524NG Details

  • Manufacturer Part Number:

    SJ1-3524NG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Same Sky

  • Additional Feature:

    LOW PROFILE

  • Audio Type:

    STEREO

  • Board Mounting Option:

    SOLDER HOLDING POSTS

  • Body Breadth:

    0.236 inch

  • Body Depth:

    0.563 inch

  • Body Length:

    0.472 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    3.5MM AUDIO

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    100 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    5000 Cycles

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    29.4 N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.079 inch

  • Termination Type:

    SOLDER
