SJ1-3525NG - Same Sky

Description: 3.5 mm, Stereo, Right Angle, Through Hole, Isolated Ground, 3 Conductors, 2 Internal Switches, Audio Jack Connector

Download SJ1-3525NG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

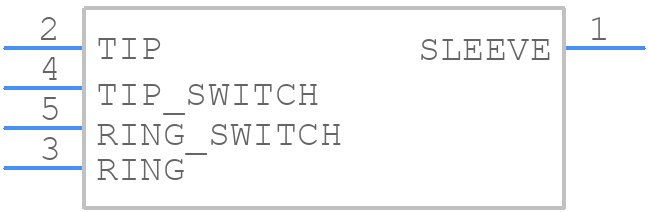

SJ1-3525NG - Same Sky - PCB symbol
click to zoom
PCB Footprints

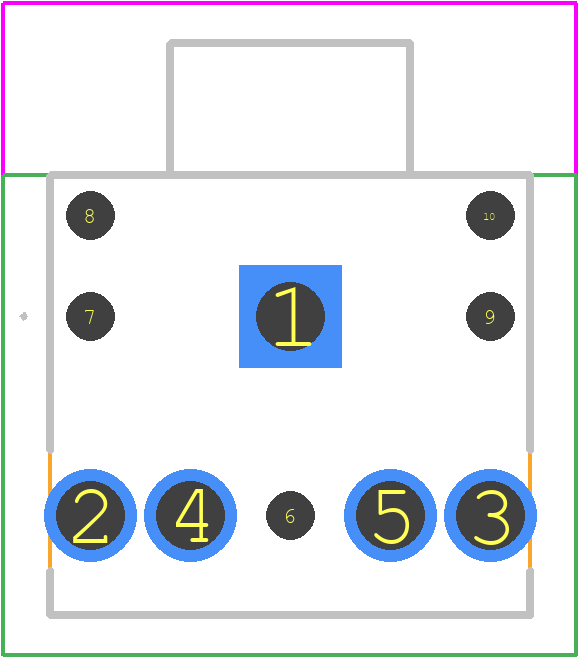

SJ1-3525NG - Same Sky PCB footprint - Other - Other - SJ1-3525NG-1
click to zoom
3D Models
SJ1-3525NG - Same Sky - 3D model - Other - SJ1-3525NG-1
click to zoom

SJ1-3525NG Details

  • Manufacturer Part Number:

    SJ1-3525NG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Same Sky

  • Additional Feature:

    LOW PROFILE

  • Audio Type:

    STEREO

  • Board Mounting Option:

    SOLDER HOLDING POSTS

  • Body Breadth:

    0.236 inch

  • Body Depth:

    0.563 inch

  • Body Length:

    0.472 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    3.5MM AUDIO

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    100 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    5000 Cycles

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    29.4 N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.079 inch

  • Termination Type:

    SOLDER

SJ1-3525NG Frequently Asked Questions (FAQs)

  • A recommended PCB layout for the SJ1-3525NG is to use a 4-layer board with a solid ground plane on the bottom layer, and to keep the input and output traces as short as possible to minimize EMI.
  • To ensure the SJ1-3525NG operates within its specified temperature range, make sure to provide adequate airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating in a high-temperature environment.
  • The recommended input capacitor value for the SJ1-3525NG is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR capacitor is recommended to minimize voltage ripple.
  • Yes, the SJ1-3525NG can be used in a redundant or parallel configuration to increase power output or improve reliability. However, it is recommended to consult with a qualified engineer to ensure proper design and implementation.
  • The maximum cable length for the output of the SJ1-3525NG depends on the specific application and the type of cable used. As a general rule, it is recommended to keep the output cable length as short as possible to minimize voltage drop and EMI.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SJ1-3525NG Overview

Use the download button to access the SJ1-3525NG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SJ1-3, or try a keyword search, such as Audio/RCA Connectors

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
