SJ1-3533NS - Same Sky

Description: 3.5 mm Stereo Jack, 3 Pin Right-Angle, PCB Mount, Full Shield, Metal Bushing

Download SJ1-3533NS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SJ1-3533NS - Same Sky - PCB symbol
click to zoom
PCB Footprints

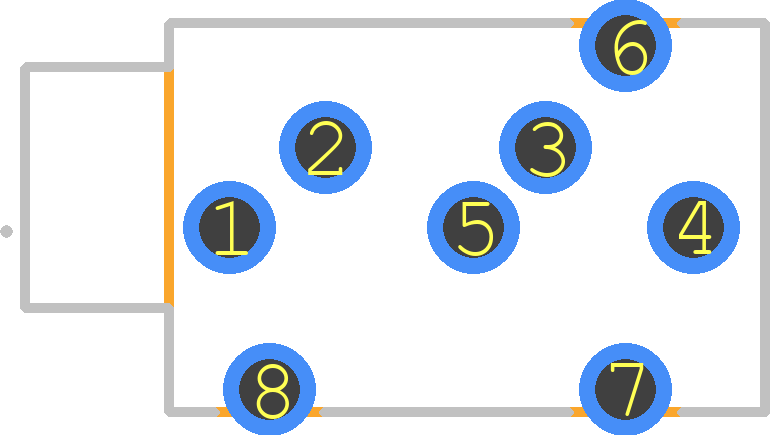

SJ1-3533NS - Same Sky PCB footprint - Other - Other - SJ1-3533NS
click to zoom
3D Models
SJ1-3533NS - Same Sky - 3D model - Other - SJ1-3533NS
click to zoom

SJ1-3533NS Details

  • Manufacturer Part Number:

    SJ1-3533NS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Same Sky

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    0.5 inch

  • Body Depth:

    0.73 inch

  • Body Length:

    0.38 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    3.5MM AUDIO

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • Contact Resistance:

    50 mΩ

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    5000 Cycles

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED KEY

  • Rated Current (Signal):

    1 A

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Terminal Length:

    0.13 inch

  • Termination Type:

    SOLDER

SJ1-3533NS Frequently Asked Questions (FAQs)

  • A recommended PCB layout for the SJ1-3533NS is to keep the input and output traces separate, use a solid ground plane, and minimize the length of the input and output traces to reduce EMI and noise.
  • To ensure reliability in high-temperature applications, ensure proper thermal management, such as using a heat sink or thermal interface material, and follow the recommended derating guidelines for the SJ1-3533NS.
  • The recommended input capacitor value for the SJ1-3533NS is 10uF to 22uF, depending on the specific application and input voltage requirements.
  • Yes, the SJ1-3533NS can be used in a redundant or parallel configuration to increase power output or improve reliability, but ensure proper synchronization and current sharing to avoid damage or instability.
  • To troubleshoot common issues with the SJ1-3533NS, check the input voltage, output load, and thermal management, and ensure proper PCB layout and component selection. Consult the datasheet and application notes for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SJ1-3533NS Overview

Use the download button to access the SJ1-3533NS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SJ1-3, or try a keyword search, such as Audio/RCA Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
