SJA1105ELY - NXP

Description: Ethernet ICs Five- Ports AVB Automotive Ethernet Switch

Download SJA1105ELY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SJA1105ELY - NXP - PCB symbol
click to zoom
PCB Footprints

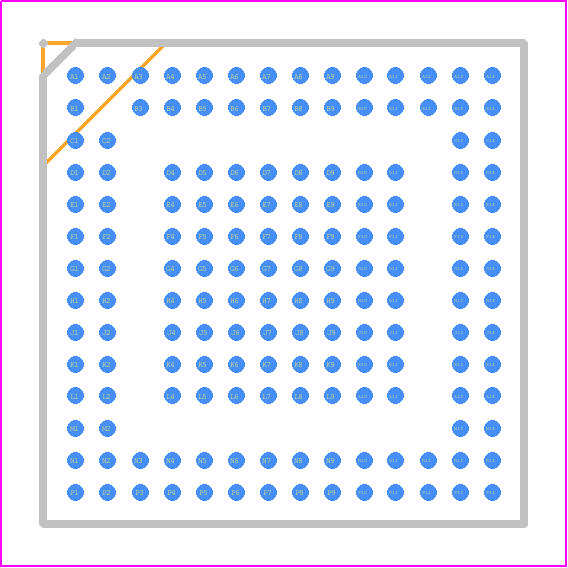

SJA1105ELY - NXP PCB footprint - BGA - BGA - SOT1427-1
click to zoom
3D Models
SJA1105ELY - NXP - 3D model - BGA - SOT1427-1
click to zoom

SJA1105ELY Details

  • Manufacturer Part Number:

    SJA1105ELY

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LFBGA-159

  • Manufacturer Package Code:

    SOT1427-1

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    5A991

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B159

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    159

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA159,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.5 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

SJA1105ELY Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the SJA1105ELY application note (AN11244). It's essential to follow this layout to ensure proper operation and minimize electromagnetic interference (EMI).
  • The SJA1105ELY can be configured using the NXP SJA1105 configuration tool. This tool allows you to generate a configuration file that can be loaded into the device. You can also use the SJA1105 software development kit (SDK) to develop custom configuration software.
  • The SJA1105ELY supports cable lengths up to 100 meters, as specified in the IEEE 802.1Q standard. However, the actual cable length may vary depending on the specific application and environmental conditions.
  • NXP provides a troubleshooting guide for the SJA1105ELY in the device's datasheet and application notes. Additionally, you can use tools like oscilloscopes and logic analyzers to debug the device's behavior.
  • Yes, the SJA1105ELY is designed to work with other NXP devices, such as the LPC and i.MX microcontrollers. NXP provides reference designs and software examples to help integrate the SJA1105ELY with these devices.
