SJA1105PELY - NXP

Description: Five- Ports AVB Automotive Ethernet Switch

Download SJA1105PELY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SJA1105PELY - NXP - PCB symbol
click to zoom
PCB Footprints

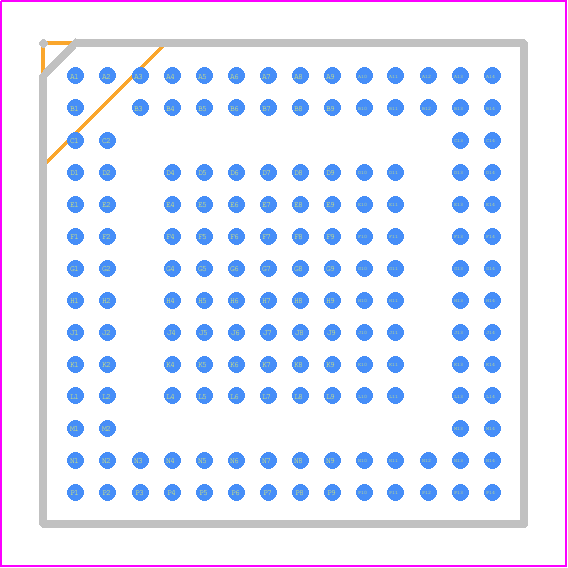

SJA1105PELY - NXP PCB footprint - BGA - BGA - SOT1427-1
click to zoom
3D Models
SJA1105PELY - NXP - 3D model - BGA - SOT1427-1
click to zoom

SJA1105PELY Details

  • Manufacturer Part Number:

    SJA1105PELY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFBGA-159

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    5A991

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PBGA-B159

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    159

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA159,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.5 mm

  • Supply Current-Max:

    200 mA

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    SUPPORT CIRCUIT

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

SJA1105PELY Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the SJA1105PELY application note (AN11244). It's essential to follow this layout to ensure proper operation and minimize electromagnetic interference (EMI).
  • The SJA1105PELY can be configured using the NXP SJA1105 Software Development Kit (SDK). The SDK provides a set of APIs and example code to help you configure the device for various network topologies, such as VLANs, multicast, and QoS.
  • The SJA1105PELY supports cable lengths up to 100 meters, as specified in the IEEE 802.1Q standard. However, the actual cable length may vary depending on the specific application and environmental conditions.
  • NXP provides a troubleshooting guide in the SJA1105PELY application note (AN11244). Additionally, you can use tools like packet sniffers and logic analyzers to debug issues with the device.
  • Yes, the SJA1105PELY is rated for industrial temperature ranges from -40°C to 125°C. However, it's essential to ensure that the device is properly cooled and operated within the specified temperature range to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SJA1105PELY Overview

Use the download button to access the SJA1105PELY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SJA11, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
