SJA1105QEL - NXP

Description: Ethernet ICs SJA1105QEL/LFBGA159///REEL 13 Q1/T1 *STANDARD MAR

Download SJA1105QEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SJA1105QEL - NXP - PCB symbol
click to zoom
PCB Footprints

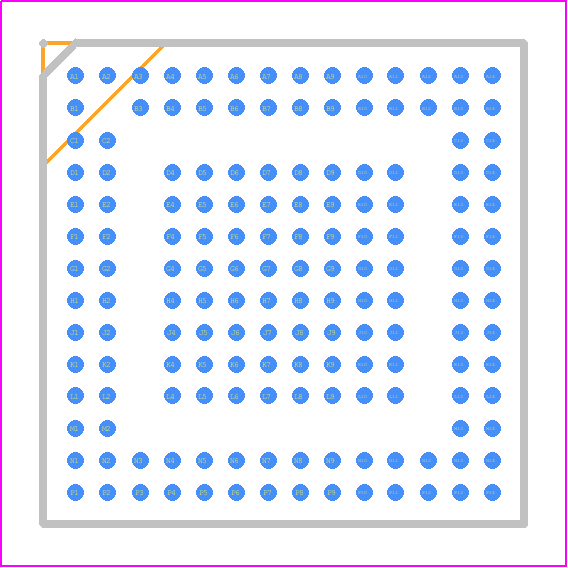

SJA1105QEL - NXP PCB footprint - BGA - BGA - SOT1427-1
click to zoom
3D Models
SJA1105QEL - NXP - 3D model - BGA - SOT1427-1
click to zoom

SJA1105QEL Details

  • Manufacturer Part Number:

    SJA1105QEL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFBGA-159

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • JESD-30 Code:

    S-PBGA-B159

  • Length:

    12 mm

  • Number of Functions:

    1

  • Number of Terminals:

    159

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA159,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Screening Level:

    AEC-Q100; ISO 26262

  • Seated Height-Max:

    1.5 mm

  • Supply Current-Max:

    200 mA

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

SJA1105QEL Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the SJA1105QEL application note (AN11243) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The SJA1105QEL can be configured using the NXP SJA1105QEL Configuration Tool, which provides a graphical user interface to set up the device for various network topologies, including star, line, and tree topologies.
  • The SJA1105QEL supports cable lengths up to 100 meters, depending on the specific cable type and network topology. However, it's recommended to consult the NXP application note (AN11243) for more detailed information on cable length limitations.
  • NXP provides a troubleshooting guide in the SJA1105QEL user manual, which includes steps to identify and resolve common issues, such as packet loss, errors, and configuration problems. Additionally, NXP offers technical support and FAQs on their website.
  • Yes, the SJA1105QEL is designed to work seamlessly with other NXP devices, including microcontrollers, switches, and transceivers. NXP provides a range of compatible devices and development boards to support various applications and use cases.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SJA1105QEL Overview

Use the download button to access the SJA1105QEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SJA11, or try a keyword search, such as Telecom Switching Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
