SJA1105REL - NXP

SJA1105REL Details

• Manufacturer Part Number:

  SJA1105REL

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

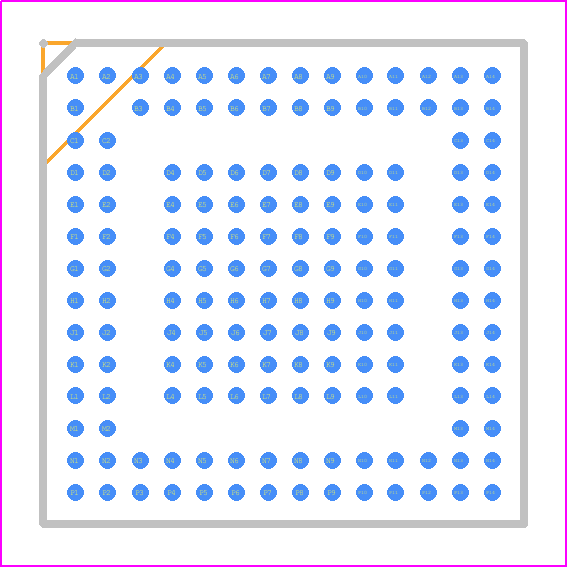

  LFBGA-159

• Country Of Origin:

  Mainland China, Taiwan

• HTS Code:

  8542.39.00.01

• Manufacturer:

  NXP Semiconductors

• JESD-30 Code:

  S-PBGA-B159

• Length:

  12 mm

• Number of Functions:

  1

• Number of Terminals:

  159

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA159,14X14,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Screening Level:

  AEC-Q100; ISO 26262

• Seated Height-Max:

  1.5 mm

• Supply Current-Max:

  200 mA

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Telecom IC Type:

  ETHERNET SWITCH

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  12 mm
