SJA1105RELY - NXP

Description: Ethernet ICs Five- Ports AVB Automotive Ethernet Switch with SGMII support

Download SJA1105RELY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SJA1105RELY - NXP - PCB symbol
click to zoom
PCB Footprints

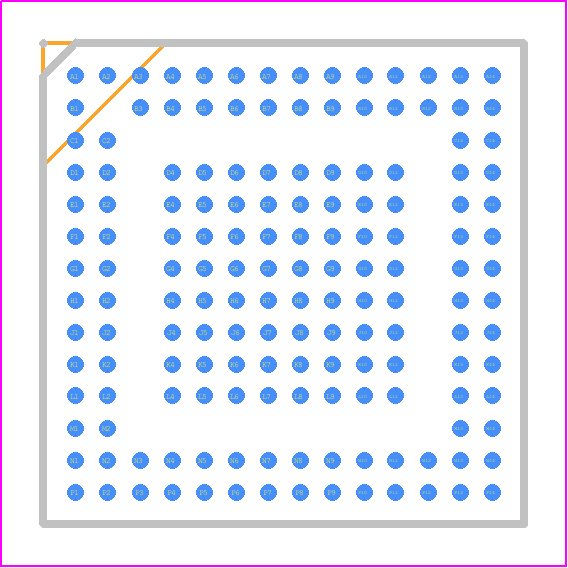

SJA1105RELY - NXP PCB footprint - BGA - BGA - SOT1427-1
click to zoom
3D Models
SJA1105RELY - NXP - 3D model - BGA - SOT1427-1
click to zoom

SJA1105RELY Details

  • Manufacturer Part Number:

    SJA1105RELY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFBGA-159

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • JESD-30 Code:

    S-PBGA-B159

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    159

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA159,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100; ISO 26262

  • Seated Height-Max:

    1.5 mm

  • Supply Current-Max:

    200 mA

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

SJA1105RELY Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the SJA1105RELY application note (AN11535). It's essential to follow this layout to ensure proper operation and minimize electromagnetic interference (EMI).
  • The SJA1105RELY can be configured using the NXP's SJA1105 Configuration Tool. This tool allows you to generate a configuration file that can be loaded into the device. You can also use the SJA1105RELY's register programming interface to configure the device manually.
  • The SJA1105RELY supports cable lengths up to 100 meters, as specified in the IEEE 802.1Q standard. However, the actual cable length may vary depending on the specific application and cable quality.
  • NXP provides a troubleshooting guide in the SJA1105RELY application note (AN11535). You can also use the SJA1105RELY's built-in diagnostic features, such as the error counters and status registers, to identify and debug issues.
  • Yes, the SJA1105RELY is compatible with other NXP switch chips, such as the SJA1106 and SJA1107. However, the specific configuration and programming may vary depending on the device and application.
