SK-1010 - Delta Electronics

Description: AC Power Entry Modules IEC Connector, 250VAC, 15A (UL/CSA)/10A (VDE), PCB-PCB

Download SK-1010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

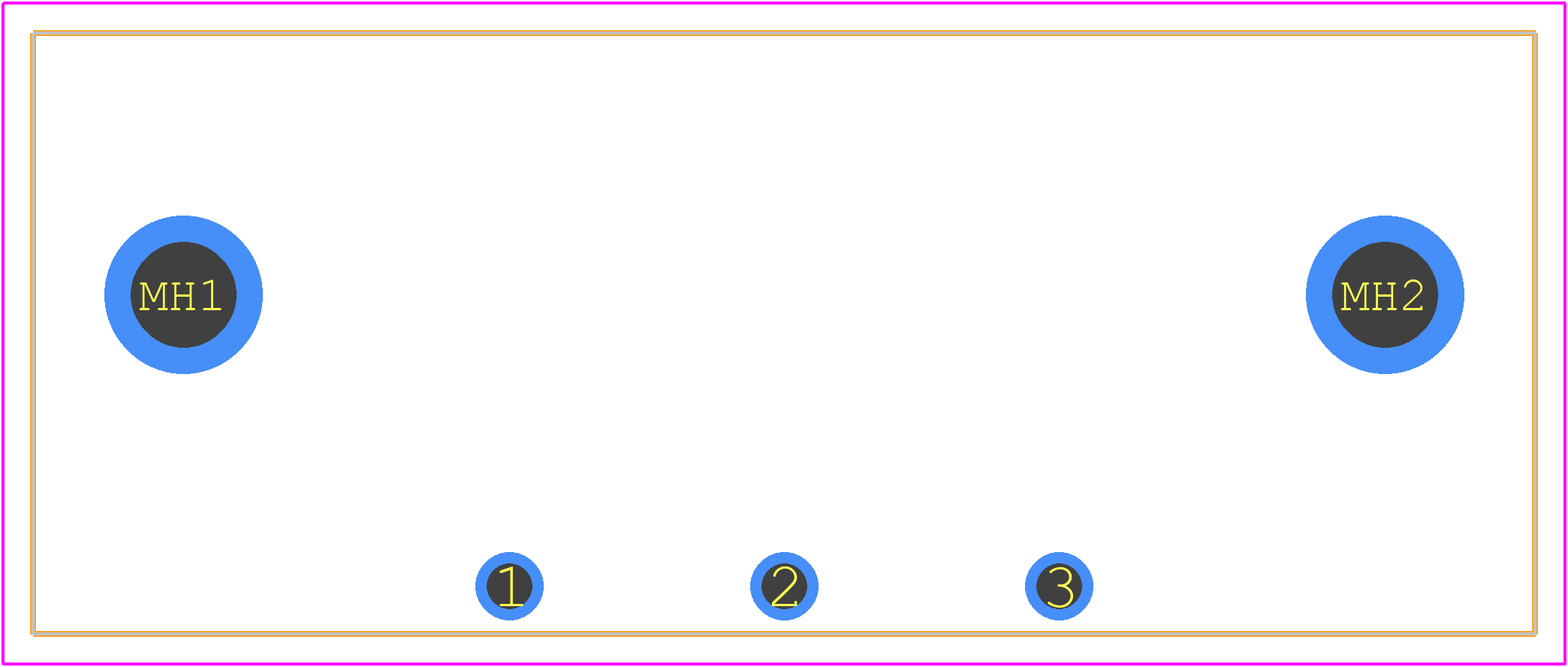

SK-1010 - Delta Electronics PCB footprint - Other - Other - SK-1010-2
click to zoom
3D Models
SK-1010 - Delta Electronics  - 3D model - Other - SK-1010-2
click to zoom

SK-1010 Details

  • Manufacturer Part Number:

    SK-1010

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    0

  • Additional Feature:

    STANDARDS: CCC; CSA; VDE; UL 94V-0

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NICKEL

  • Contact Finish Termination:

    NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10/15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3
