SK-14D07-VG 6 - LITTELFUSE

Description: C&K COMPONENTS - SK-14D07-VG 6 - Slide Switch, SP4T, On-On-On-On, Through Hole, SK Series, 300 mA

Download SK-14D07-VG 6 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SK-14D07-VG 6 model

Email notifications will be applied after download.

Send part feedback

Symbol

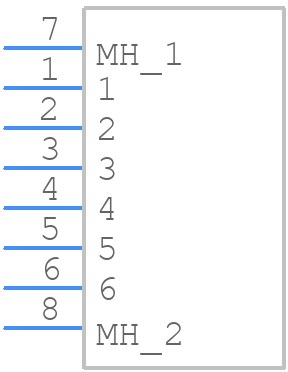

SK-14D07-VG 6 - LITTELFUSE - PCB symbol

PCB Footprints

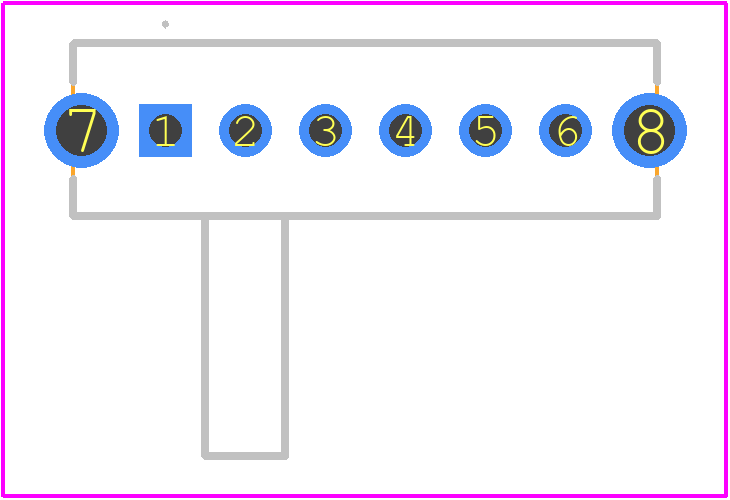

SK-14D07-VG 6 - LITTELFUSE PCB footprint - Other - Other - SK-14D07-VG 6-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for SK-14D07-VG 6
Part Number SK-14D07-VG 6
Manufacturer LITTELFUSE
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - SK-14D07-VG 6-1
Released Date Jun 28, 2026
Last Modified Date Jun 28, 2026 5:47 PM UTC
Pinout / Pin List Click Here (Member Only)

SK-14D07-VG 6 Details

Manufacturer Part Number:
SK-14D07-VG 6
Manufacturer:
Littelfuse Inc

Trust Checks

Community Provided

System Verified

Community Approved

SK-14D07-VG 6 Overview

Use the download button to access the SK-14D07-VG 6 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SK-14, or try a keyword search, such as Slide Switches
