SK-2+ - Mini-Circuits

Description: RF Wireless Misc 2X Plug-In Multiplier, Output Freq 2 - 1000 MHz

Download SK-2+ Model

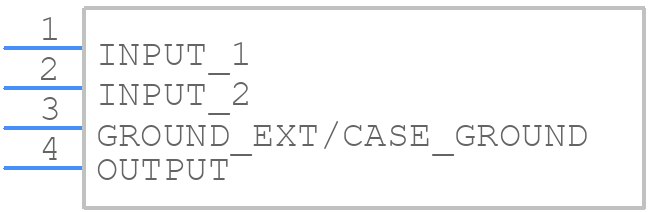

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SK-2+ - Mini-Circuits PCB footprint - Other - Other - B02
click to zoom
3D Models
SK-2+ - Mini-Circuits  - 3D model - Other - B02
click to zoom

SK-2+ Details

  • Manufacturer Part Number:

    SK-2+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    16 dB

  • Input Power-Max (CW):

    23.01 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    2 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    SIP4,.16

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN SILVER

SK-2+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • To achieve the best possible noise figure, ensure that the input and output impedances are well-matched to 50 ohms, and use a high-quality, low-noise power supply. Additionally, keep the device away from noise sources and use proper shielding and grounding techniques.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's recommended to derate the device's power dissipation above +70°C to ensure long-term reliability. Consult the datasheet and Mini-Circuits' application notes for more information.
  • The SK-2+ is not designed for switching applications. It's a linear amplifier, and switching it on and off can cause damage to the device. If you need a switchable amplifier, consider using a different device or a switchable amplifier module specifically designed for that purpose.
  • Common issues with the SK-2+ can often be attributed to poor PCB layout, inadequate decoupling, or improper input/output matching. Consult Mini-Circuits' application notes and troubleshooting guides, and consider seeking support from their technical team if the issue persists.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SK-2+ Overview

Use the download button to access the SK-2+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
