SK12BG13 - NKK Switches

SK12BG13 Details

• Manufacturer Part Number:

  SK12BG13

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  NKK Switches

• Actuator Material:

  POLYACETAL

• Actuator Type:

  KEYLOCK

• Additional Feature:

  KEY REMOVABLE POSITION 1

• Body Breadth:

  14.5034 mm

• Body Height:

  10.4902 mm

• Body Length or Diameter:

  15.748 mm

• Bushing Diameter:

  0.472 inch

• Bushing Length:

  0.413 inch

• Bushing Type:

  UNTHREADED

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact (DC) Max Power Rating R Load:

  0.4VA@28VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.08 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER NICKEL

• Indexing Angle:

  90 deg

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  GLASS FILLED POLYESTER

• JESD-609 Code:

  e3

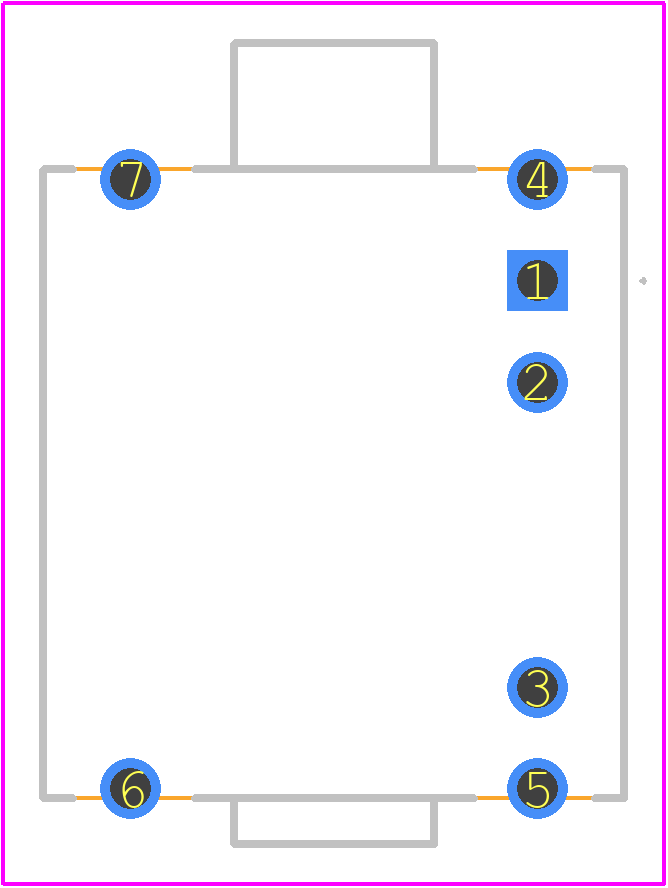

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  2

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -25 °C

• PCB Hole Count:

  10

• Sealing:

  MOLDED

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  KEYLOCK SWITCH

• Terminal Finish:

  TIN

• Terminal Length:

  0.138 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER

• Washability:

  SOLVENT
