SK22D02L4 - XKB Connectivity

Description: Toggle switch, side plug two gears, double row high temperature salt fog resistance 24 hours,10.8x6.1x7.7, black handle height 4mm

Download SK22D02L4 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SK22D02L4 model

Email notifications will be applied after download.

Send part feedback

Symbol

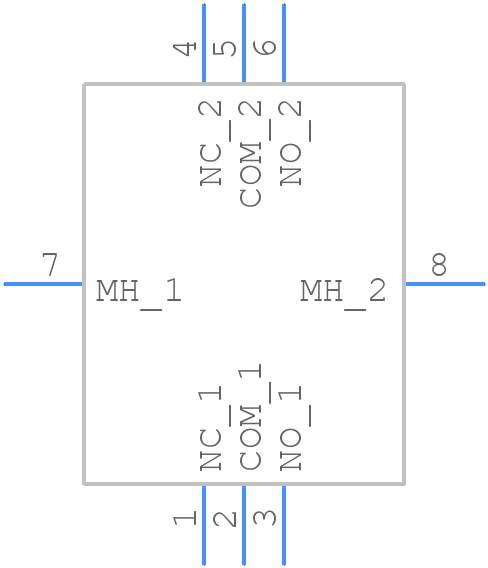

SK22D02L4 - XKB Connectivity - PCB symbol

PCB Footprints

SK22D02L4 - XKB Connectivity PCB footprint - Other - Other - SK22D02L4-2

3D Models

SK22D02L4 - XKB Connectivity - 3D model - Other - SK22D02L4-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SK22D02L4
Part Number SK22D02L4
Manufacturer XKB Connectivity
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - SK22D02L4-2
Released Date Nov 5, 2025
Last Modified Date Dec 4, 2025 9:55 AM UTC
Pinout / Pin List Click Here (Member Only)

SK22D02L4 Details

Manufacturer Part Number:
SK22D02L4
Manufacturer:
XKB Connectivity

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SK22D02L4 Overview

Use the download button to access the SK22D02L4 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SK22D, or try a keyword search, such as Slide Switches
