- Part Number SK45UT12
- Manufacturer Semikron
- Pin Count 15
- Part Category Thyristor
- Package Category Other
- Footprint Name Other - SK45UT12-3
- Released Date Sep 21, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SK45UT12 Details
-
Manufacturer Part Number:
SK45UT12
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
12
-
Manufacturer Package Code:
CASE T 13
-
ECCN Code:
EAR99
-
HTS Code:
8541.30.00.80
-
Manufacturer:
SEMIKRON
-
YTEOL:
7.07
-
Case Connection:
ISOLATED
SK45UT12 Frequently Asked Questions (FAQs)
-
The recommended gate resistor value for SK45UT12 is typically between 10 ohms to 22 ohms, depending on the specific application and switching frequency. However, it's recommended to consult with SEMIKRON's application notes or contact their technical support for more specific guidance.
-
To ensure proper thermal management for SK45UT12, it's essential to provide a good thermal interface between the module and the heat sink. Apply a thin layer of thermal grease, and ensure the heat sink is properly mounted and secured. Additionally, consider using a heat sink with a high thermal conductivity and a sufficient surface area to dissipate heat efficiently.
-
The maximum allowed voltage imbalance between the DC links in a SK45UT12-based inverter is typically around 10% to 15% of the nominal DC link voltage. Exceeding this limit can lead to uneven current sharing and reduced reliability. It's recommended to consult with SEMIKRON's application notes or contact their technical support for more specific guidance.
-
Yes, SK45UT12 can be used in a parallel configuration to increase the current rating. However, it's essential to ensure that the modules are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing. Additionally, the user should consult with SEMIKRON's application notes or contact their technical support for more specific guidance on parallel operation.
-
The recommended storage temperature range for SK45UT12 is -40°C to 125°C. Storing the modules outside this range can affect their reliability and performance.
Trust Checks
Expert Contribution
System Verified
Community Approved
SK45UT12 Overview

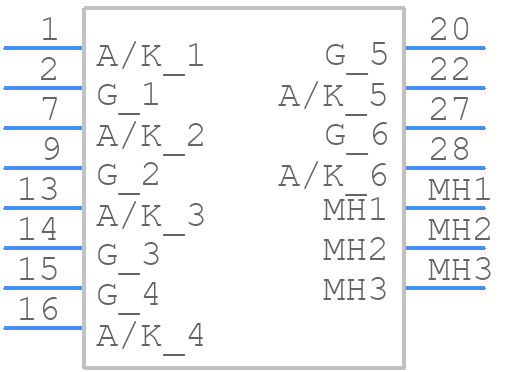

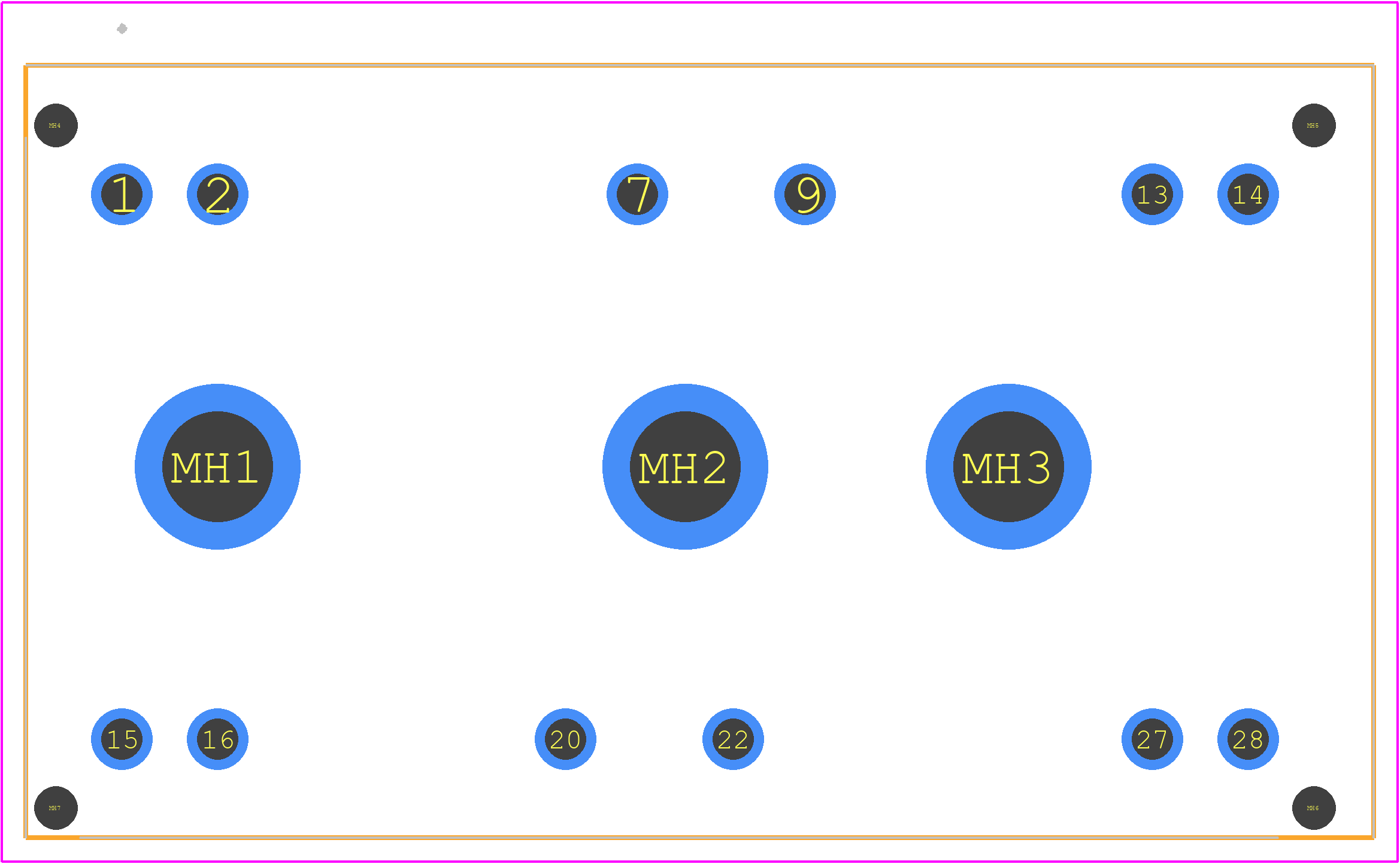

Use the download button to access the SK45UT12 schematic symbol, PCB footprint, and 3D model.
